With the global infrastructure heating up, how can the power distribution standards for construction sites keep up? Ouyue Electric has launched a high-protection Stainless Steel Outdoor Left and Right Double-Door Box

I. Why must the distribution box on construction sites be orange?

On construction sites, the striking orange color is never just for good looks - it is a safety signal. Safety standards for construction sites in various countries generally require that temporary power distribution equipment use highly recognizable warning colors, allowing operators and mechanical drivers to identify the power source location at a glance in complex environments, while also warning non-professionals to stay away.

This Stainless Steel Outdoor Left and Right Double-Door Box with left and right doors specially designed for construction sites is coated with orange outdoor industrial paint and has three practical functions: First, it has high recognition and meets the color standards for safety warnings on construction sites; Secondly, the outdoor-grade polyester powder coating is resistant to ultraviolet aging and does not fade or powderize after long-term exposure to sunlight. Thirdly, the base material is made of 304 stainless steel.

Even if the coating is accidentally scratched during construction site bumps, the base material itself will not rust. This is an advantage that traditional iron powder-coated boxes cannot match.

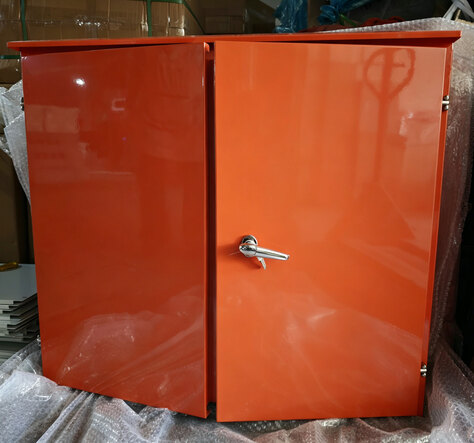

II. Horizontal double-door structure: Designed for frequent wiring and maintenance on construction sites

Unlike traditional vertical distribution boxes, this Stainless Steel Outdoor Left and Right Double-Door Box with left and right doors adopts a square horizontal box structure. It is equipped with a rainproof sloping top on the top, which can effectively prevent rainwater from accumulating on the top and seeping into the interior of the box. The inclined top and the main body of the box are made of the same stainless steel plate, which is formed by CNC bending in one piece without any welding seams, thus eliminating the risk of leakage at the top from a structural perspective.

The enclosure features a double-door design with left and right doors that can be opened independently. This allows electricians to open only the door on the operating side when wiring or performing maintenance, while keeping the opposite side closed to minimize dust and moisture ingress. The dual-door configuration also provides greater working space, making it especially suitable for construction projects requiring frequent adjustments to circuit configurations.

The main door on the right is equipped with a chrome-plated handle lock for secure locking, preventing unauthorized access or improper connections. A continuous waterproof sealing strip is embedded along the door edge, made of EPDM closed-cell foam material that maintains stable elasticity over long periods under temperatures ranging from -40°C to 120°C, ensuring reliable performance even in harsh construction environments exposed to sun, rain, and extreme temperature fluctuations, thereby achieving an overall IP65 protection rating. The door hinge uses stainless steel hinges, enabling smooth opening and closing while resisting rust. Multiple round cable entry/exit holes are pre-installed at the bottom of the enclosure, each fitted with rubber grommets to protect cable insulation from cuts by metal edges, while also providing effective dust and water resistance.

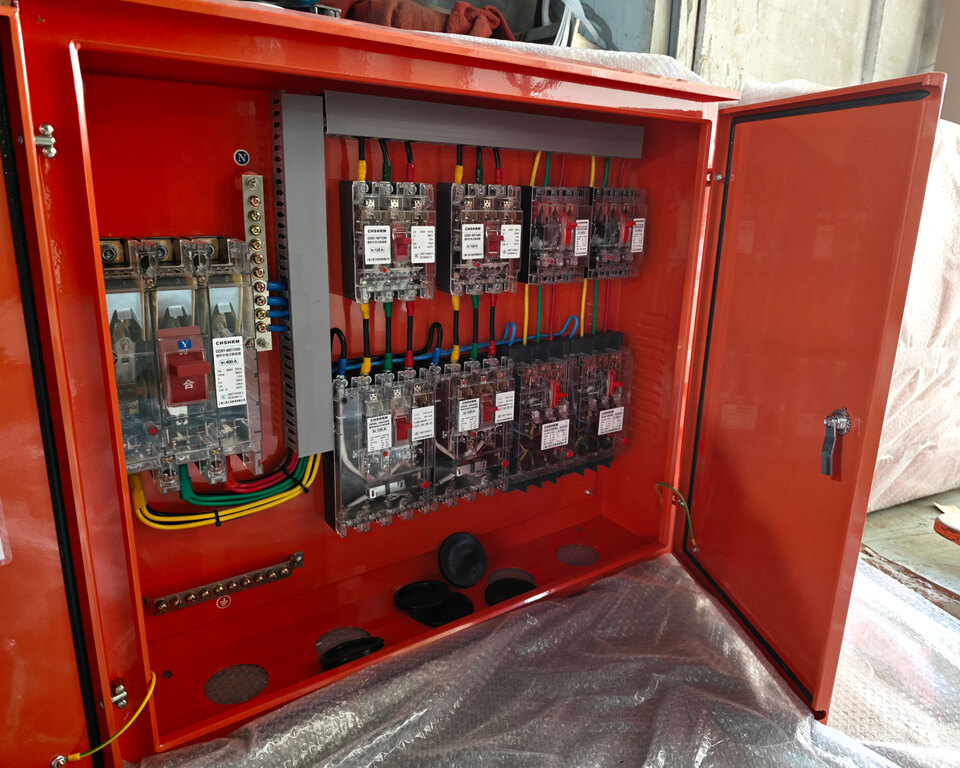

III. Internal configuration details: A secondary distribution electrical box that meets safety standards

When the double doors are opened, the electrical configuration inside the sStainless Steel Outdoor Left and Right Double-Door Box is fully displayed. All component selections and wiring methods comply with the safety regulations for temporary electricity use on construction sites.

Main circuit: 400A main switch, visible breakpoints ensure power-off safety

A transparent casing plastic-encased circuit breaker is installed at the left incoming line end as the main switch, with a rated current of 400A and dual protection functions for overload and short circuit. The transparent shell design enables a direct view of the opening and closing status of the internal contacts, achieving a "visible break point" - before maintenance, electricians can visually confirm that the main circuit has been completely disconnected without relying on indicator lights for judgment.

The yellow, green and red three-phase wires, the blue neutral wire and the yellow-green dual-color ground wire are all connected below the main switch. All are distinguished by the national standard colors, and the wiring is neat and standardized. The cables are organized and routed through cable trays to prevent crisscrossing and disorder, reducing the risk of short circuits caused by line friction.

Branch protection: circuit breaker above, residual current device (RCD) below—each machine with its own switch and RCD.

To the right of the main switch, the circuit is divided into two rows: the upper row consists of branch circuit breakers, while the lower row contains circuit breakers with built-in residual current protection (RCDs), achieving the standard configuration of "one machine, one switch, one RCD." Each construction device is independently connected to a dedicated circuit breaker and RCD. If any device experiences leakage current or overload, only that specific circuit trips, leaving other devices unaffected.

The branch switch is typically rated at 125A, making it adaptable to construction equipment of various power levels—from small electric tools to high-power welders and tower crane power supply—allowing flexible configuration. All branch circuit breakers feature transparent housings, enabling visual inspection of each circuit's contact status through the clear panel without requiring power shutdown or opening the enclosure during routine inspections.

Grounding system: Independent neutral bar and grounding bar, TN-S three-phase five-wire system

The box is equipped with independent neutral wire bars (N bars) and grounding bars (PE bars), which are respectively used for centralized wiring of the neutral wire and the protective ground wire. This design ensures reliable grounding protection and complies with the TN-S three-phase five-wire power consumption standard - in the entire system, the protective neutral wire (PE) and the working neutral wire (N) are strictly separated, and the equipment casing is always in a safely grounded state.

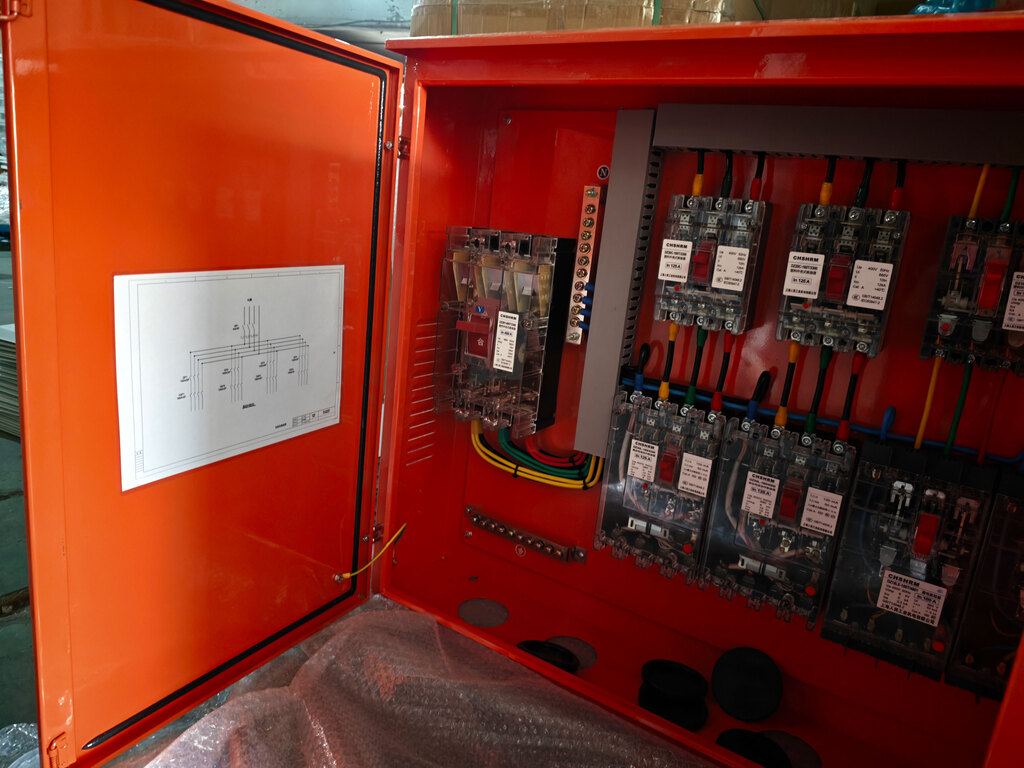

The inner side of the box door is pasted with a clear electrical system schematic diagram, marking the circuit direction and switch configuration, which is convenient for electricians to quickly identify faults and also enables different teams to quickly understand the system structure when working alternately.

Heat dissipation design: The heat dissipation holes on the side plates reduce the operating temperature rise

The side panels of the box are designed with multiple sets of heat dissipation holes, forming natural air convection channels. This can metabolize the internal heat during continuous operation of the equipment and reduce the operating temperature of the components. The interior of the heat dissipation holes is equipped with insect-proof nets to prevent insects from entering and causing short circuits, while also avoiding a large amount of construction dust from flowing in.

IV. With the acceleration of global infrastructure construction, the market development of construction site distribution boxes is also speeding up

The launch of this stainless steel outdoor left and right double-door box coincides with a new phase of accelerated global infrastructure development. Policies and investments in multiple major economies are driving sustained growth in demand for power distribution equipment at construction sites:

United States: Under the Infrastructure Investment and Jobs Act signed in 2021, the U.S. plans to invest $1.2 trillion over an eight-year period in areas such as roads, bridges, public transportation, railways, airports, ports, power grids, and broadband. This large-scale infrastructure initiative means a significant demand for temporary electricity on construction sites, making compliant site distribution boxes a necessity before any project begins.

Middle East: Super projects such as Saudi Arabia's NEOM future city, Red Sea tourism development, and Dubai urban expansion continue to progress. Construction sites across the region commonly face extreme environmental challenges including high temperatures, sandstorms, and intense ultraviolet radiation, which impose higher demands on electrical enclosures' protection ratings, weather resistance, and secure locking mechanisms.

Southeast Asia: Countries such as Vietnam, Indonesia, and the Philippines are accelerating their industrialization and urbanization processes, with infrastructure projects including industrial parks, ports, and highways being launched in large numbers. The power distribution equipment on construction sites in these markets is undergoing an upgrade from low standards to international ones, significantly increasing demand for high-protection, compliant distribution boxes.

Europe: The EU's "Global Gateway" infrastructure initiative and connectivity projects with non-EU countries continue to advance, while expectations for Ukraine's reconstruction further boost demand for temporary power distribution equipment in the European construction market. CE certification and IP65 protection rating are fundamental requirements for entering European construction projects. Ouyue Electric's Stainless Steel Outdoor Left and Right Double-Door Box  has already obtained CE certification and passed IP65 testing, giving it a first-mover advantage in compliance.

According to industry research institutions, global spending on electrical equipment in the construction sector is expected to grow at an average annual rate of approximately 5–6%, with the market size projected to exceed $80 billion by 2028. As a mandatory component for new construction projects, the demand for site distribution boxes is expected to grow faster than the overall construction electrical equipment market.

V. Enter the global construction site power distribution market with compliant products

Whether you are a Chinese engineering contractor involved in overseas infrastructure projects or a distributor supplying power distribution equipment to local markets, Ouyue Electric can provide you with Stainless Steel Outdoor Left and Right Double-Door Box that meet international site safety standards, leveraging our factory's manufacturing capabilities and compliance certifications.

Once the product drawings are confirmed, the finished product can be delivered within just 7 days. Please send us your project's electrical requirements or enclosure specifications, and we will provide you with a complete package service including electrical configuration solutions, certification documents, and fast prototyping scheduling.
