Outdoor Rainproof Distribution Box: Six Details Inside

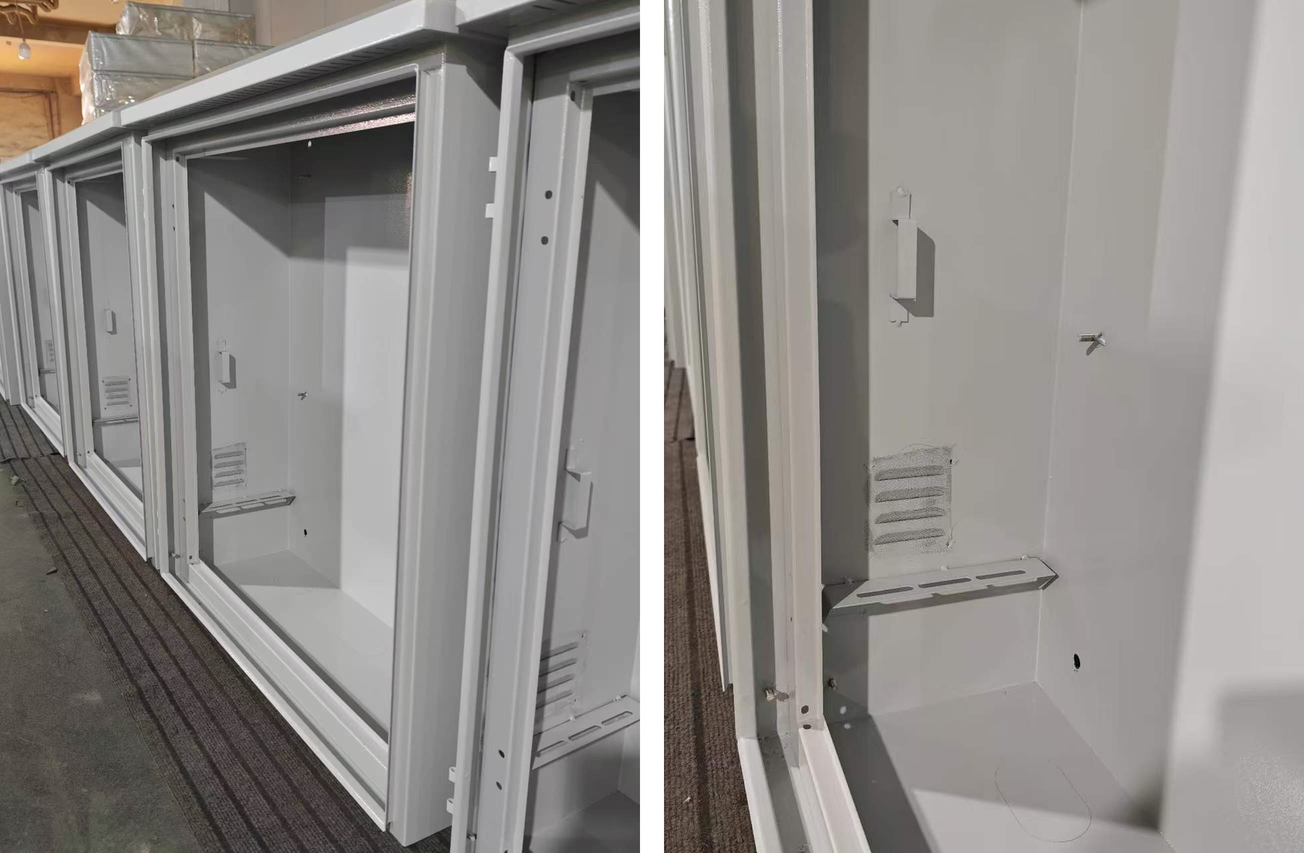

Ouyue Electric is publishing factory photos of stainless steel outdoor rainproof distribution boxes, matching six details visible on the finished enclosure to the assembly steps behind each one. The photos come from units in production, and the open door shows the door frame seal, side vent with insect mesh, internal bracket, lower slotted support, circular base cutout marking and door hinges.

An enclosure is a sheet metal assembly, so a deviation in any step stays on the finished product. A door frame without flatness leaves an uneven gap once the door closes. A gasket with an uneven joint cannot hold the declared protection level under real installation conditions. Buyers checking a sample can start with three points: gap evenness around a closed door, a gasket running as one continuous loop, and cutouts matching the drawing.

Six Visible Details and the Assembly Steps Behind Each One

Door Frame and Seal: Where the Protection Level Comes From

The door frame seal runs continuously in the photos, pressed into the channel and formed as one piece at the four corners. The gasket is the part most easily lost during assembly: only a gasket running as one continuous loop closes the circuit once the lock is tightened. Ouyue Electric supplies outdoor rainproof distribution boxes with protection ratings available in IP54, IP55, IP56 and IP65. Ventilated versions with side vents and insect mesh ship at IP54 or IP55.

Side Vent and Insect Mesh: Dividing Cooling From Insects

The side wall in the photos carries a louvred vent with white insect mesh fitted behind. Low level intake and high level exhaust form a convection path carrying heat from components out of the enclosure. The mesh sits behind the vent to block flying insects and stop insect bodies collecting inside, where debris can bridge terminals. In dusty regions, a washable dust filter fitted outside the vent is worth adding, together with a cleaning schedule.

Internal Brackets and Lower Supports: Reserved for Buyer Components

The photos show an internal bracket on the wall and a row of slotted supports lower down. Internal space is reserved for buyer supplied components: circuit breakers, controllers, communication modules or power supplies are fitted by the buyer, while Ouyue Electric supplies the enclosure, brackets and mounting holes. The slotted support sits below the vent, carrying component weight without blocking the convection path.

Base Cutout Marking: Avoiding a Water Trap

The base panel in the photos shows a circular cutout marking. Cables enter from below the enclosure, avoiding the water trap created when cables enter from the side. The reserved cutout can be punched or left closed to suit the site, reducing coating damage from drilling on site. Where site drilling is planned, the drawing should state hole diameter and quantity so Ouyue Electric can complete the work before dispatch.

Door Hinges: the Weak Point in Service Life

The door in the photos is connected to the enclosure by side hinges. Hinges, locks, screws and earth studs are all exposed hardware, and in coastal, high salt fog or chemical environments exposed hardware usually fails before the enclosure body. Specify 304 or 316 stainless steel to match the enclosure material and avoid galvanic corrosion between dissimilar metals. Where the door must stay easy to operate, the technical agreement should record the hinge type and the maintenance interval.

Surface Finish and Batch Consistency

The photos show a light grey coating with consistent gloss and colour across one production batch. Coating durability depends on pre-treatment quality rather than on powder alone, and incomplete degreasing or descaling leads to blistering and peeling within six months to two years. Buyers should ask for coating type and film thickness, and confirm the colour against a RAL or Pantone reference to avoid visible batch differences on reorders.

Batch Delivery

The enclosures in the photos are produced in a run from one drawing, with consistent dimensions and cutout positions. Ouyue Electric operates a 2,000 square meter plant in Liushi Town, Wenzhou, Zhejiang, with two assembly lines, more than 10 years of metal enclosure manufacturing experience and CE certification.

Enclosures come in iron, 304 stainless steel and 316 stainless steel. Coastal and high salt fog projects are better served by 316, while inland or general outdoor sites are served by 304. The minimum order is 10 pieces, with drawing based customization and batch delivery.

Frequently Asked Questions

Can insects get in through the vent on a stainless steel outdoor rainproof distribution box?

Insect mesh is fitted behind the vent, with a mesh size chosen to block common flying insects while allowing air through. In dusty regions, a washable dust filter outside the vent and a regular cleaning schedule are worth adding.

What components can the internal bracket carry?

The internal bracket and lower slotted support fix buyer supplied circuit breakers, controllers, communication modules or power supplies. Ouyue Electric supplies the enclosure, brackets and mounting holes, and the buyer fits the internal components.

Can the base cable entry be opened to suit the site?

Yes. The base panel carries a reserved circular cutout, punched or left closed to suit the site, with diameter and quantity confirmed against the drawing.

Why is a stainless steel enclosure given a coating?

The choice depends on the project environment. The enclosures in the photos carry a light grey coating for consistent colour matching and easier removal of surface marks, while a natural stainless finish suits general outdoor sites.

What is the minimum order quantity?

10 pieces. Length, width, height, sheet thickness, material, cutout positions, printing and vent quantity are all made to drawing.

Distribution box distributors, solar and energy storage contractors, and telecom base station integrators are welcome to contact Ouyue Electric for samples and pricing of stainless steel outdoor rainproof distribution boxes. After a drawing or dimensional requirement is supplied, the technical team confirms material, cutouts, surface finish and protection level. Enquiries can be sent through the enquiry form.
