➤ Quality Assurance: CE & IP65 certifications
➤ Cost Efficiency: Competitive pricing without compromising on durability.
➤ Speed: 2,000m² factory with dual assembly lines for rapid delivery.
➤ Expertise: 10+ years in metal box manufacturing with advanced production lines.
Tailor-made boxes from design to packaging (materials, dimensions, finish).
From sample prototyping (with 3D drawings/video confirmation) to bulk production.
Door-to-door shipping with secure packaging.
Quality guarantees and post-sale compensation for defects.

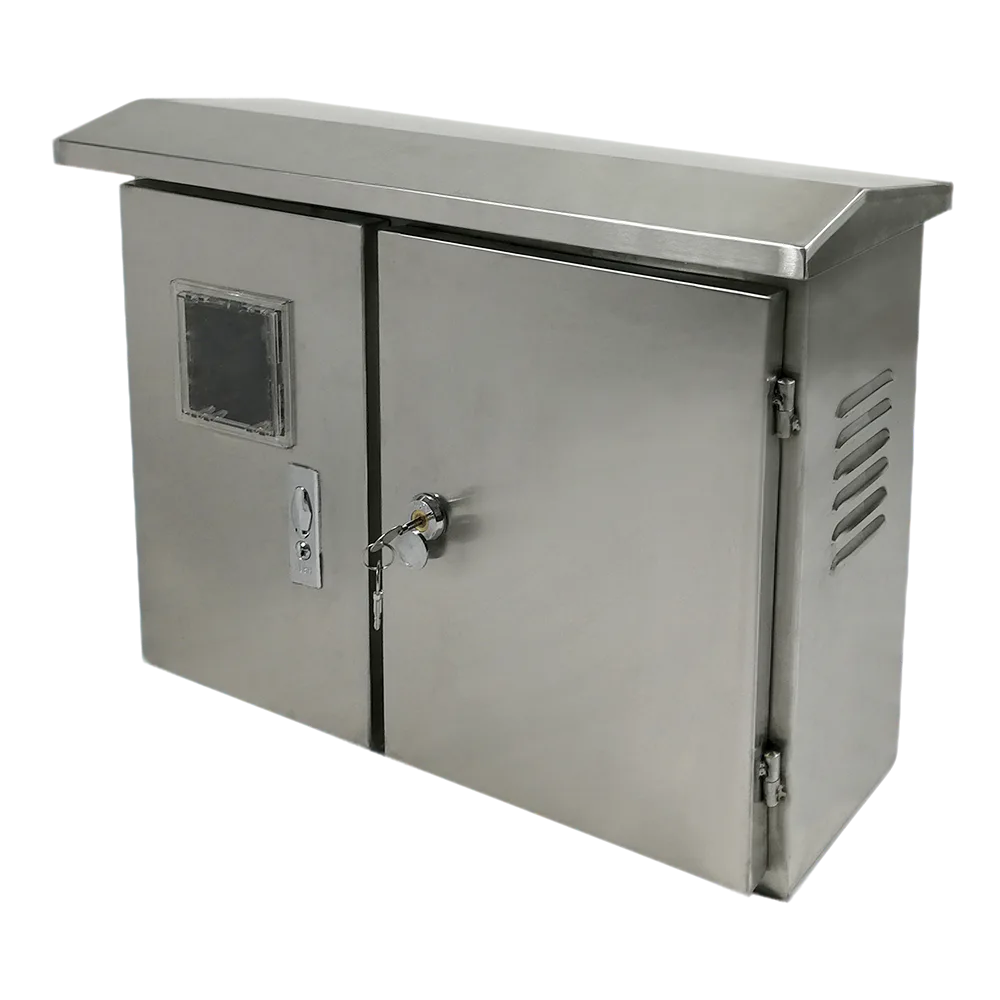

Metal distribution boxes are primarily utilized to safeguard the circuits and switch control components within electrical systems. The robust metal structure of this series of products can withstand external physical impacts and a certain level of outdoor environmental interference, thereby effectively ensuring the long - term stable operation of the electrical equipment inside the products. This series of products can fulfill the diverse indoor and outdoor power distribution installation requirements in industrial zones, commercial areas, residential areas, and other locations.
When selecting products from this series, it is advisable to prioritize the choice of materials based on the performance or application scenarios of the required products.
1. The Stainless Steel Distribution Box is fabricated from high - quality 304, 316, or 201 stainless steel, which exhibits excellent corrosion resistance and can effectively prevent rust in a humid environment. After being brushed or polished, the product's surface appears aesthetically pleasing and is easy to clean. Stainless - steel distribution boxes are especially suitable for environments with high hygiene standards, such as the food, chemical, and pharmaceutical industries, and are also applicable to outdoor damp or dusty situations.
2. The Iron Distribution Box is made of high - quality cold - rolled steel plate and undergoes processes such as acid washing, phosphating, and electrostatic powder coating. These processes can guarantee the protective performance and high - strength structure of the product, and the cost is competitive. The product has a smooth appearance, and the color can be customized. It is applicable to indoor industrial plants, equipment rooms, building electrical shafts, and distribution rooms.
When choosing the required distribution box, in addition to the material, the following choices should also be noted:
●Protection grade (IP code) : For example, IP54 (dust-proof, splash-proof), IP65 (dust-tight, water-proof). This factor determines whether the product box can be used in outdoor, dusty or humid environments.
●Installation methods: Mainly divided into exposed installation (wall-mounted, vertical pole) and concealed installation (embedded in the wall). The appropriate installation method should be selected based on the installation environment.
During the procurement process, customers often prioritize the balance between product durability and acquisition cost. Additionally, they frequently evaluate whether the installation method offers sufficient flexibility and whether the protection rating meets the requirements of specific operating environments.
As a supplier with extensive expertise in the metal distribution boxes industry, we fully recognize the importance customers place on these factors. Accordingly, while offering standard specification products, we also provide customized solutions through our Manufacturer in China, tailored to meet specific client needs such as installation configurations, inlet and outlet wiring arrangements, internal layout design, and product color options.

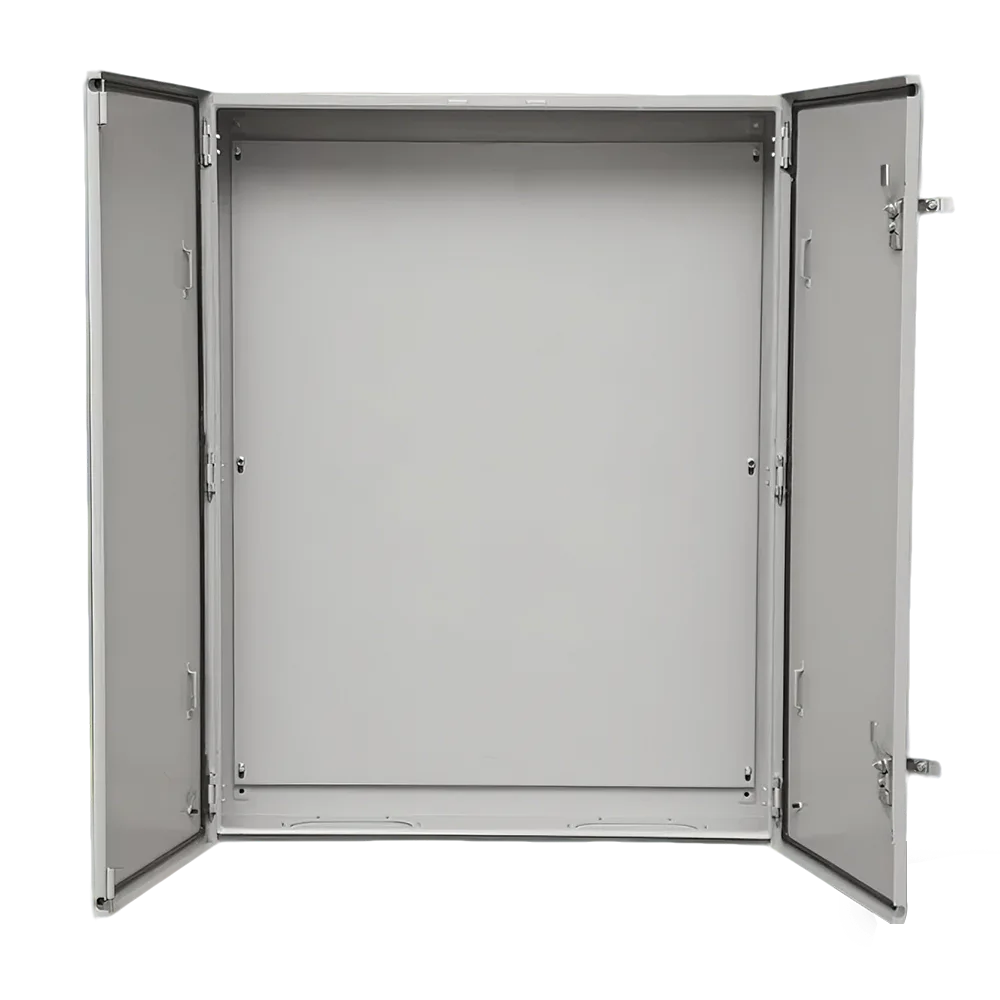

Metal cabinets are suitable for protecting precision electronic equipment, control units, etc. The core value lies in creating a stable operating environment for the internal core electrical equipment.
●Stainless steel cabinet: With 304 or 316 stainless steel (201 is optional) as the core material. The advantage lies in the corrosion resistance of this material, which can resist the erosion of water, chemical media and salt spray. It is suitable for highly corrosive environments (such as chemical plants, coastal areas, food and pharmaceutical industries, and high-frequency cleaning sites).
●Iron cabinet: Made of high-strength, high-quality cold-rolled steel plate, and treated with surface electrostatic powder coating, this process builds a firm protective coating on the surface of the plate, which is sufficient to cope with the vast majority of conventional indoor industrial environments, data centers, offices, communication rooms and other usage environments.
●Process and appearance: stainless steel cabinet surface often do drawing or mirror processing, so that you can highlight the metal color texture; Iron cabinet will provide a variety of spray colors (such as black, white, gray, etc.), the appearance of the choice is more flexible, can be selected according to the actual needs.
We are a professional factory in China, integrating R&D, production and sales. As a reliable supplier, we provide a full range of conventional specifications and custom metal cabinets.
| Product | Material | Size(mm) | Thickness(mm) | color |
| Stainless Steel Outdoor Rainproof Cabinet | stainless steel | 600*1000*350 | 0.8mm+1mm | Stainless steel color(sliver) |
| 600*1200*350 | 0.8+1.2mm | |||
| 700*1500*350 | 1mm+1.2mm | |||
| 700*1700*350 | 1mm+1.2mm | |||
| customizable | customizable | customizable |
| Product | Material | Size(mm) | Thickness(mm) | color |
| Iron Power Cabinet | Iron | 1700*700*370 | 1mm | Iron color(white) |
| 1500*700*370 | 1mm | |||
| 1200*600*370 | 1mm | |||
| customizable | customizable | customizable | ||
| Product | Material | Size(mm) | Thickness(mm) | color |
| iron Double-Door Floor-Standing Cabine | iron | customizable | customizable | customizable |

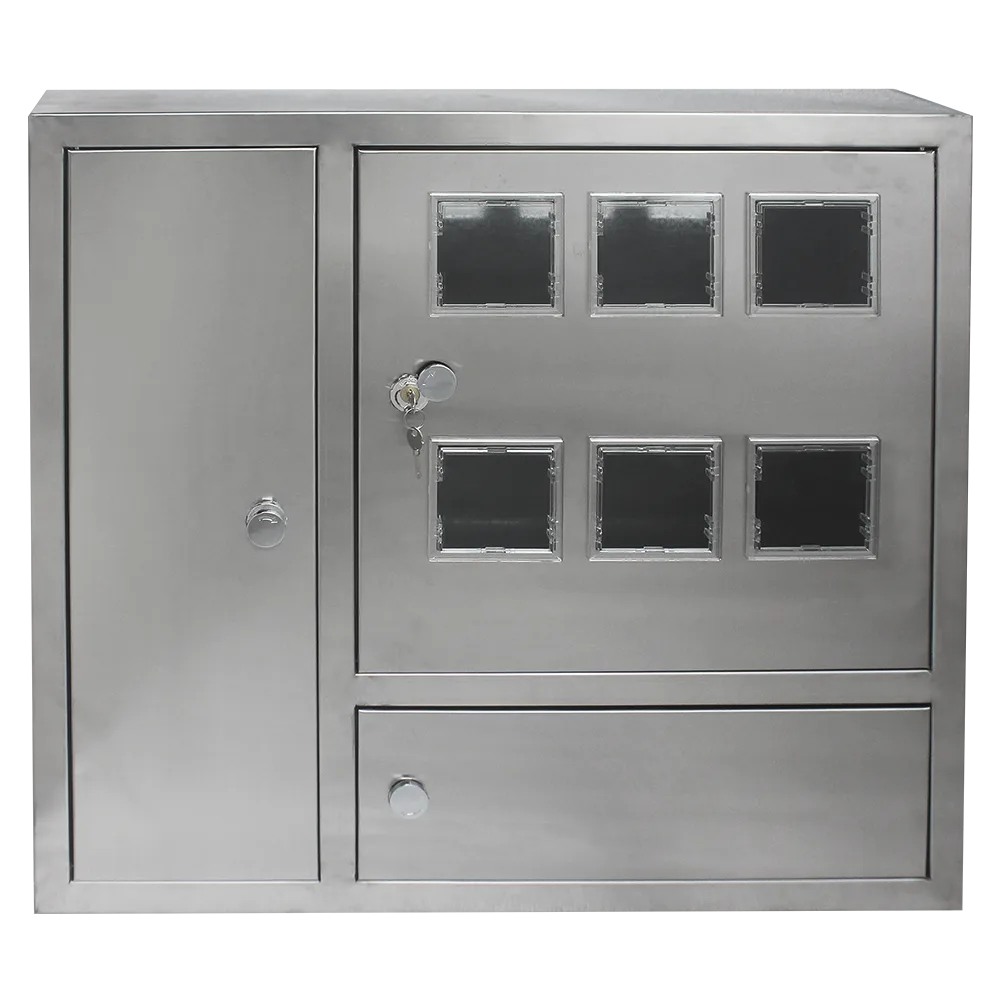

Metallic Electrical Meter Box is designed for the protection of electric meters and distribution equipment, the core role is to centralize the management of electrical equipment, and provide protection against dust, moisture and external damage, to ensure that the equipment can operate in the outdoor environment for a long time.
The most fundamental difference between the two is the difference in materials and applicable scenarios, which directly determines the procurement cost and maintenance cycle.
●Stainless Steel Electric Meter Box: made of 304, 316 stainless steel, this material has corrosion resistance, excellent rust resistance, anti-corrosion performance. Can deal with long-term outdoor sun and rain, coastal high humidity salt fog environment or indoor humid places.
●Iron Electrical Meter Box: made of high quality cold rolled steel plate. Rust resistance depends on the surface treatment process, usually using electrostatic spray process, suitable for dry indoor environment. This product has become the most widely used and economical choice for indoor environment with its cost advantage and variety of appearance color options.
Take a common 12-meter centralized electric meter box as an example:
●Material and protection: stainless steel meter box with the material itself, in the outdoor wet environment of long-term rust resistance is much better than the iron meter box. If the ferroelectric meter box is used in harsh outdoor environment, its coating may fail due to aging and damage, resulting in corrosion of the box.
●Process and appearance: stainless steel meter box surface is often drawn primary color, texture is strong; The ferroelectric meter box can be painted to achieve the same color as the surrounding (such as power ash), which is easier to unify with the building environment.
●Cost and maintenance: the initial purchase cost of stainless steel meter box is high, but the maintenance cost in the whole life cycle is very low; Ferroelectric meter boxes have low initial cost, but may require regular maintenance or replacement in harsh environments.
Our factory has the full process production capacity from design, stamping, bending to welding and spraying. In addition to the standard off-the-shelf product model of format, we can also choose the installation method (open/dark), meter model and quantity, input and output line specifications and special protection requirements (such as transparent Windows, lock type) according to your needs, to provide fast customized production services to ensure that the product perfectly fits your needs.
The Enclosed Panel Distribution Box is a standardized distribution equipment shell formed by injection molding of high-insulation and high-flame-retardant engineering plastic ABS. It is mainly used to protect various electronic components such as lighting and sockets in indoor environments.
This is the standard model commonly used internationally.
●Core design: Standard modular installation holes and installation rails (18mm as one module) are used. Usually, electronic components such as miniature circuit breakers and leakage protection devices are combined for embedded installation (concealed installation), and the wall surface needs to be treated to be flush with the decorative surface.
●Application scenarios: Indoor power distribution in residential buildings, office buildings, commercial stores and other places, usually used to protect individual household lighting, overall control of socket circuits, etc.
The PZ-40 series is another widely used model. Its structure is similar to that of the PZ-30, but the design details and application focuses are different.
●Core design: It also adopts a modular structure, but the size series may be more diverse. Generally, it is used more widely. The box body can be directly fixed to the wall without pre-burial. Some models are also equipped with transparent or openable panels.
●Application scenarios: It is suitable for occasions such as the renovation of existing buildings, secondary decoration of shops, and industrial plants where quick installation is required and it is not convenient to damage the walls.
The Loop Box includes a transparent and visible panel multi-circuit switch control box and a plastic panel multi-circuit switch control box.
●Core design: The core design of this series of products lies in utilizing the internal space to accommodate more circuits (such as 12 channels, 18 channels, 24 channels or even more). The interior adopts a more efficient wiring channel design to ensure that multiple wires are neatly arranged and have good heat dissipation.
●Application scenarios:In situations where centralized control and management of a large number of power circuits are required, such as centralized control of lighting in large offices, power distribution in public areas of shopping malls, and power distribution for auxiliary equipment in data center computer rooms, etc.

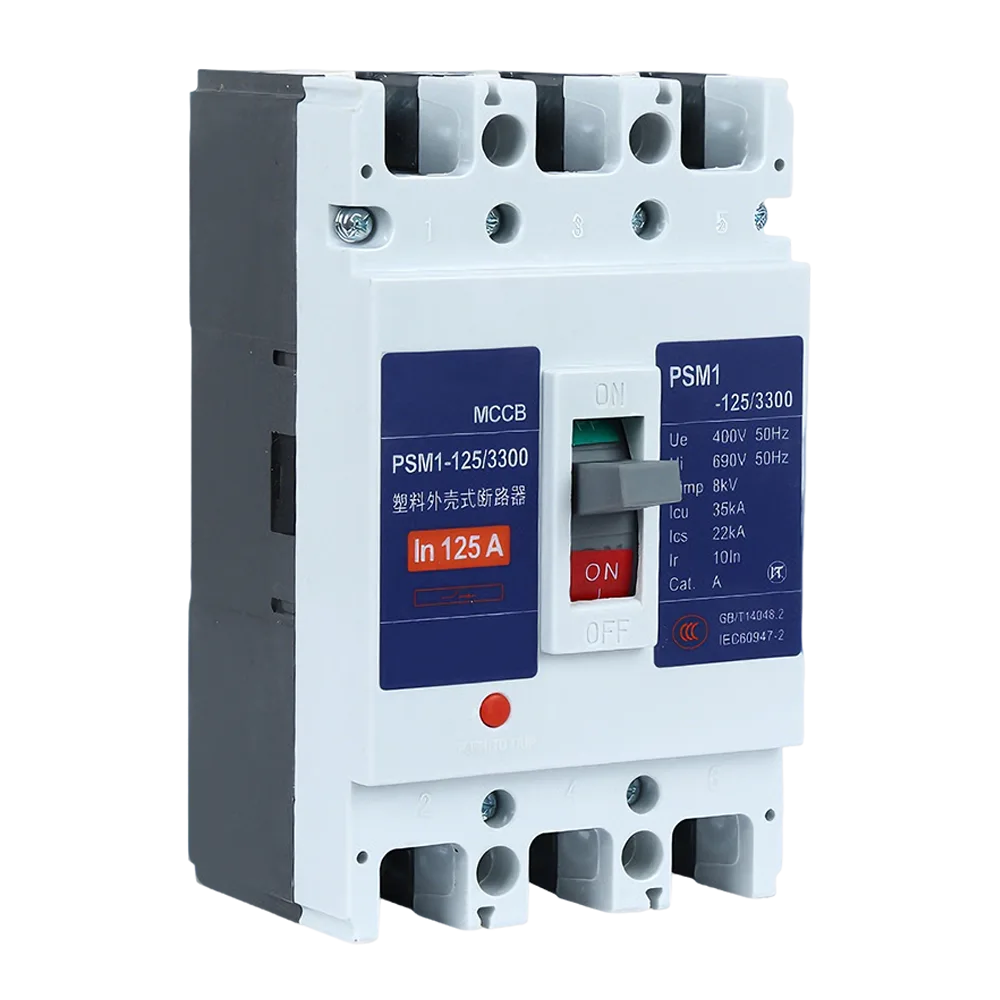

A circuit breaker is a device used in low-voltage distribution systems to protect circuits. Its function is to automatically and quickly cut off the current when faults such as overload and short circuit occur in the circuit, to prevent wire overheating, equipment damage and even electrical fires, thereby ensuring personal and property safety.
According to their breaking capacity, application scenarios and structural features, they are mainly classified into three categories: miniature circuit breakers, molded case circuit breakers and universal circuit breakers.
Miniature circuit breakers are the most fundamental components applied in terminal distribution circuits. The rated current is usually below 63A, and it adopts a standard modular design, supporting quick installation on rails.
The casing is made of engineering plastic, with a wide rated current coverage range and higher breaking capacity. This product seals the operating mechanism, contact system, etc. within a plastic casing, providing higher safety and supporting additional modules (such as auxiliary contacts, undervoltage trip units).
Also known as frame-type circuit breaker (ACB), its rated current can reach over 6300A, featuring extremely high breaking capacity and protection functions. Adopt a modular frame structure.
|
|
Miniature Circuit Breaker |
Molded case Circuit Breaker |
Universal Circuit Breaker |
|
Current range |
≤ 63A |
16A - 1600A |
630A - 6300A+ |
|
Scope of use |
Terminal loop protection |
Intermediate level/equipment level protection and power distribution |
Main incoming line/busbar protection and system management |
|
Selection requirements |
Number of circuits, number of poles, and instantaneous tripping characteristics |
Load type, breaking capacity, and whether accessories are needed |
System short-circuit capacity, selective coordination, and intelligent requirements |
We are a source factory located in China, capable of providing a full range of products from miniature circuit breakers, molded case circuit breakers to universal circuit breakers. Our value lies in:
Professional selection support: According to your needs, our engineer team will recommend the suitable circuit breaker model for you.
Fast response and delivery: We have stable cooperation with various international logistics providers and can quickly deliver products to your hands.
We’re here to be your go-to partner for electrical protection, giving your electrical systems a solid and safe foundation with our reliable products.
ABS junction box is an electrical box made of ABS plastic material. It features durability, impact resistance, water and dust resistance, and is suitable for various...
High mechanical strength: Metal materials usually have high mechanical strength, capable of withstanding certain impacts and compressors, ensuring the safe operation of internal electricity meters and other equipment.
Leakage circuit breakers, also known as residual current circuit breakers (RCCBs) or ground fault circuit interrupters (GFCIs), are electrical devices designed...
Metal Distribution Box, as an indispensable core component in the electrical system, is mainly used for centralized Distribution, control and protection of circuits.
