Molded case circuit breakers are used to protect low-voltage distribution systems. Their function is to quickly and reliably cut off the power supply when overload or short-circuit faults occur in the lines and electrical equipment, ensuring the safety of the distribution system.
Fastening the shell:The product shell is made of high-strength, flame-retardant engineering plastic. This material is safe and insulating, and can also protect the internal precision mechanism.
Double safety trip: The product is equipped with two independent "thermal" and "electromagnetic" induction systems inside.
Thermal tripping: When the current exceeds the rated value for a long time due to overload, the bimetallic strip will heat up and bend, triggering the switch to trip.
Electromagnetic trip: When a short circuit occurs, the electromagnetic coil generates a strong magnetic field, instantly pushing the mechanism to disconnect.
Arc extinguishing system:The product is internally designed with a dedicated arc extinguishing chamber, which can quickly cool and cut off the arc to ensure safe breaking.
This product has a high segmentation capacity, can cut off fault current and protect the safety of electricity usage. The rated current has a wide coverage range and can meet the protection requirements from a large air conditioner to an entire production line. It adopts a standard modular design and supports quick installation on rails.
It is mainly divided into two applications
1. Distribution protection: As the main switch or branch switch of the distribution cabinet, it is suitable for the main circuits in factories, shopping malls, schools, hospitals, etc.
2. Equipment protection: As a dedicated protection switch for large single equipment, such as electric motors, water pumps, air compressors, large air conditioners, welding machines, etc.
|
Model |
Rated Current(A) |
Pole |
Type Notes |
|

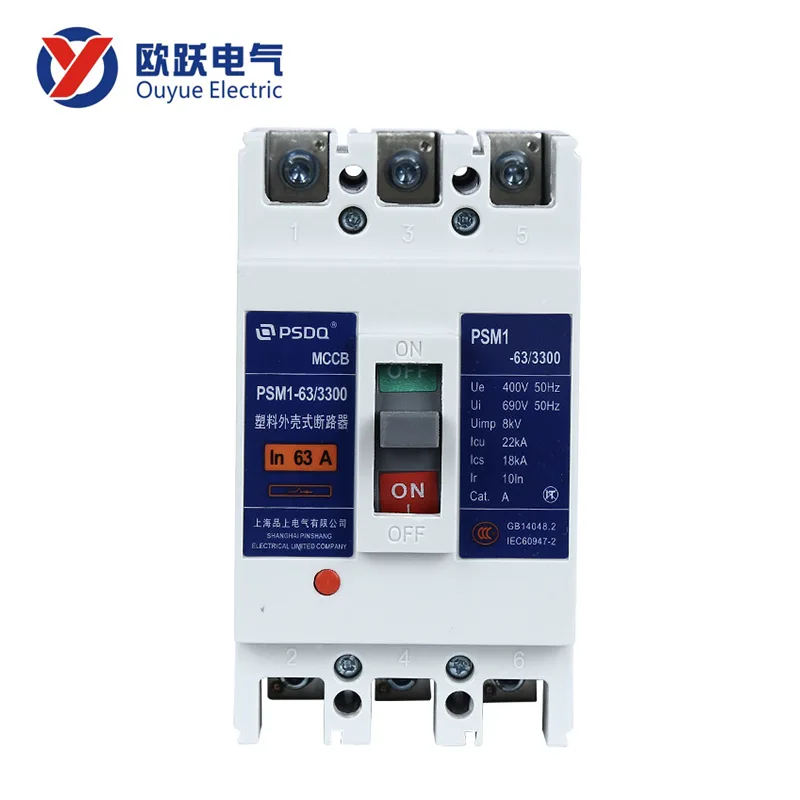

63-3P |
63 |
3P |
Thermal-magnetie |
|
63-4P |
63 |
4P |
Thermal-magnetie |
|
125-1P |
125 |
1P |
Thermal-magnetie |
|
125-2P |
125 |
2P |
Thermn1-magnetic |
|

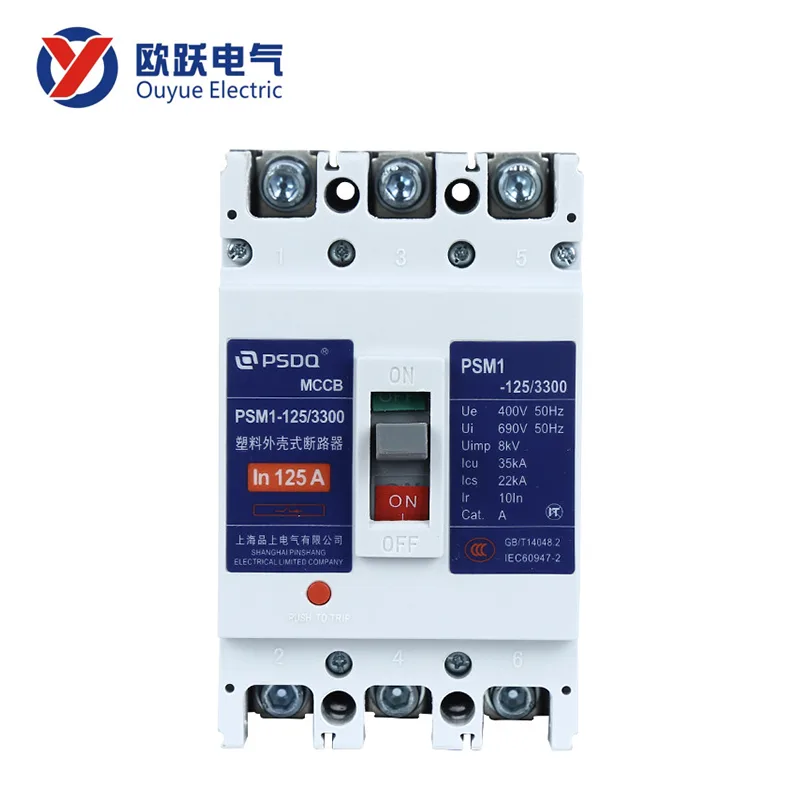

125-3P |
125 |
3P |
Thermnl-magnetie |
|
125-4P |
125 |
4P |
Thermal-magnetie |
|
250-1P |
250 |
IP |
Thermnl-magnetic |
|
250-2P |
250 |
2P |
Thermal-magnetic |
|

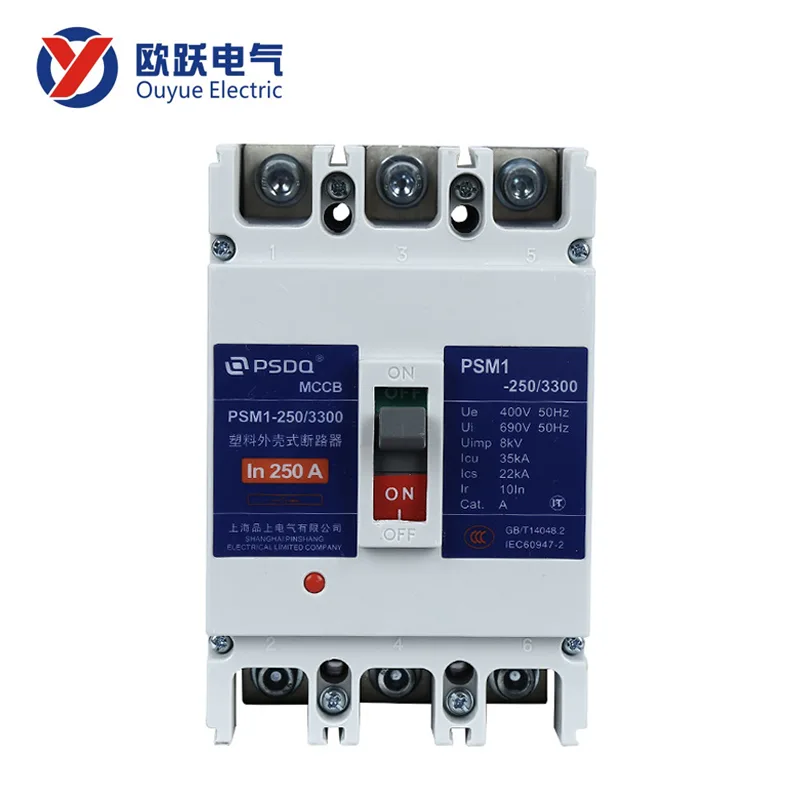

250-3P |
250 |
3P |
Thermal-magnetie |
|
250-4P |
250 |
4P |
Thermal-magnetie |
|
400-3P |
400 |
3P |
Thermal-magnetie |
|
400-4P |
400 |
4P |
Thermn1-magnetie |
|
630-3P |
630 |
3P |
Thermal-magnetie |
|
630-4P |
630 |
4P |
Thermal-magnetie |
|
s00-3P |
800 |
3P |
Theranl-magnetie |
|
800-4P |
B00 |
4P |
Thermnl-magnetie |
|
1000-3P |
1000 |
3P |
Thermal-magnetie |
|
1250-3P |
1250 |
3P |
Thermal-magnetic |
|
1250-3P(with ES) |
1250 |
3P |
Thermal-mngnetie,Eleetrie Spring |
|
1250-4P |
1250 |
4P |
Therml-magnetie |
|
1600-3P |
1600 |
3P |
Thermal-magnetic |
|
Eleetronie 125-3P |
125 |
3P |
Eleetronie trip unit |
|
Electronie 250-3P |
250 |
3P |
Electronie trip unit |
|
Electronie 400-3P |
400 |
3P |
Electronic trip unit |
|
Electronie 630-3P |
630 |
3P |
Eleetronie trip unit |
|
Eloetronie 630-4P |
630 |
4P |
Electronie trip unit |
|
Electronie 800-3P |
800 |
3P |
Electronic trip unit |
|
Electronie 800-4P |
800 |
4P |
Electronie trip unit |
|
Eleetronie 1250-3P |
1250 |
3P |
Electronic trip unit |
|
RCD 125-4P |
125 |
4P |
With Residual Current Device |
|
RCD 250-4P |
250 |
4P |
With Rosidunl Current Device |
|
RCD 400-4P |
400 |
4P |
With Residual Current Device |
|
RCD 630-4P |
630 |
4P |
With Residual Current Device |
