Outdoor Rainproof Distribution Box: Six Steps Decide Sealing

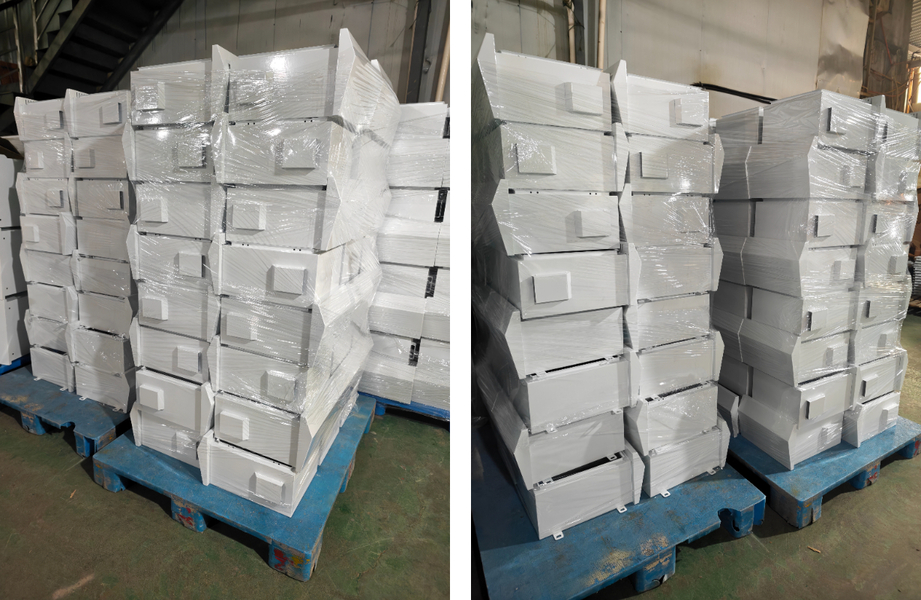

Ouyue Electric is publishing factory photos of outdoor rainproof distribution boxes together with the six production steps revealed by the finished surface. The series covers door frame flatness, internal weld quality, surface finish, gasket assembly, hardware selection and final checks before dispatch.

An enclosure is a sheet metal assembly, so a deviation in any production step stays on the finished product. A door frame without flatness leaves an uneven gap once the door closes, and rainwater follows the widest side. A weld with porosity returns as rust under the coating during the rainy season, spreading outward from an internal corner.

A gasket with an uneven joint cannot hold the declared protection level under real installation conditions. Buyers checking a sample of an outdoor rainproof distribution box can start with three points: gap evenness around a closed door, continuity of internal welds, and a gasket running as one unbroken loop.

Six Visible Details and the Steps Behind Each One

Blanking and Bending: Where Even Door Gaps Come From

Blanking sets sheet dimensions and bending sets the flatness of the door frame and the enclosure body. Once the door frame loses flatness, the gap differs at the four corners and rainwater enters along the widest side. A closing check is straightforward: shut the door and inspect the gap on all four sides with a feeler gauge, or by eye. The smaller the difference between sides, the more stable the tooling and the bending process.

Welding and Grinding: Strength and Coating Adhesion

Internal welds on an outdoor rainproof distribution box need to run continuously. Where a weld has porosity, lack of penetration or undercut, rust returns beneath the coating during the rainy season and spreads outward from the internal corner. Iron enclosures require grinding and pre-treatment before coating, so slag, oil and oxide are removed and the coating bonds. Stainless steel enclosures need weld heat tint removed as well, or the exposed surface shows discolouration.

Pre-treatment and Surface Finish: How Long Colours Last

Coating durability depends on pre-treatment quality rather than on powder alone. Where degreasing, descaling and phosphating or zirconium conversion are incomplete, the coating blisters and peels within six months to two years. Buyers should ask for coating type and film thickness, and confirm the colour against a RAL or Pantone reference to avoid visible differences on reorders. Stainless steel enclosures are supplied in natural finish or powder coated to project requirements.

Gasket Assembly: Where the Protection Level Comes From

The protection level comes from the structure as a whole, and the gasket is the part most easily lost during assembly. Only a gasket running as one continuous loop, formed at the four corners, closes the circuit once the lock is tightened. Ouyue Electric supplies outdoor rainproof distribution boxes with protection ratings available in IP54, IP55, IP56 and IP65. Ventilated versions with side vents and insect mesh ship at IP54 or IP55.

Hinges, Locks and Exposed Fasteners: the Coastal Weak Point

Corrosion resistance usually fails first at exposed hardware. For coastal, high salt fog and chemical projects, hinges, locks, screws and earth studs in 304 or 316 stainless steel keep the hardware consistent with the enclosure body and avoid galvanic corrosion between dissimilar metals. Where a door must stay easy to operate, the technical agreement should state the hinge type and the maintenance interval.

Final Checks Before Dispatch

Before dispatch, cutout positions, printing, lock operation and gasket condition are checked against the drawing. A cutout in the wrong position stops the buyer from fitting components on site, and incorrect printing puts the label at odds with the drawing. Ouyue Electric confirms cutouts and printing against the supplied drawing; length, width, height and sheet thickness can all be adjusted.

Materials and Delivery

Ouyue Electric operates a 2,000 square meter plant in Liushi Town, Wenzhou, Zhejiang, with two assembly lines, more than 10 years of metal enclosure manufacturing experience and CE certification. Enclosures are available in iron, 304 stainless steel and 316 stainless steel. Coastal and high salt fog projects are better served by 316, while inland or general outdoor sites are served by 304. The minimum order is 10 pieces, with drawing based customization and batch delivery.

Frequently Asked Questions

What door gap is acceptable on an outdoor rainproof distribution box?

Evenness matters more than a single figure. Tolerance is agreed in the drawing or the technical agreement. An over-wide gap lets rainwater in along the widest side, and an over-narrow gap makes the door hard to close and over-compresses the gasket.

How soon does a powder coated surface fade?

Fade depends on pre-treatment quality, powder type, film thickness and UV intensity. An enclosure with a thin film or poor pre-treatment loses gloss within six months to two years in high UV regions. Requesting coating type, film thickness and colour reference brings the judgement forward.

What should be done when a weld starts rusting?

First establish whether a welding defect caused the rust. Rust from porosity or lack of penetration spreads outward from the inside, and surface touch-up paint cannot stop the spread. The correct repair is to grind back to sound base metal, then repeat pre-treatment and local recoating.

Does a stainless steel enclosure still need coating?

The choice depends on the project environment. General outdoor sites can use a natural stainless finish, while chemical, strongly acidic or colour matched projects can be powder coated. Either way, the finishing requirement and the colour reference belong on the drawing.

What is the minimum order quantity?

10 pieces. Length, width, height, sheet thickness, material, cutout positions, printing and vent quantity are all made to drawing.

Distribution box distributors, solar and energy storage contractors, and telecom base station integrators are welcome to contact Ouyue Electric for samples and pricing of outdoor rainproof distribution boxes. After a drawing or dimensional requirement is supplied, the technical team confirms material, cutouts, surface finish and protection level. Enquiries can be sent through the enquiry form.
