The first batch of custom-made outdoor rainproof electric vehicle charging distribution boxes was successfully dispatched to South Korea

2026-04-27 0 Leave me a message

Full-process quality control of metal distribution boxes: Process verification from drawings to finished products

Unlike the standard production of metal distribution boxes, the customization of multi-sized products in the same batch puts forward higher requirements for the precision of sheet metal, the consistency of spraying and the interchangeability of assembly. Before mass production, the technical team of Ouyue Electric conducted the first piece confirmation on 16 different sizes of boxes and verified the following key indicators one by one:

Dimensional tolerance: Random inspection is carried out using a three-coordinate measuring instrument. The deviation of the external dimensions is controlled within ±0.5mm, and the deviation of the installation hole distance is ≤0.3mm, ensuring that the door panels and boxes of different sizes can be interchanged freely.
Protection Rating: Randomly selected samples were subjected to IPX5 water spray tests, and there was no leakage inside the box. Combined with the Panel Lock and the sealing rubber strip, it has been measured to achieve an IP65 Protection Rating.
Coating performance: Detected by an eddy current thickness gauge, the coating thickness is uniformly distributed within the range of 80-110μm. After the hundred-grid knife test, the adhesion reached grade 0 (ISO 2409 standard).

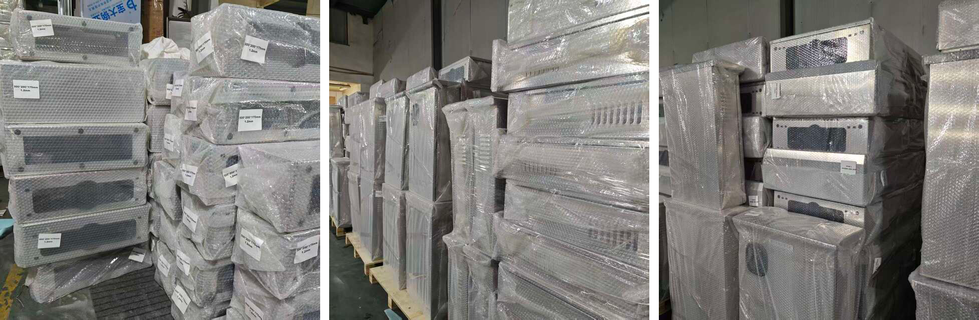

Packaging and shipping: Targeted protective measures

Considering the long shipping cycle and the handling conditions at the terminal installation site in South Korea, a strict packaging plan was implemented for this shipment:

Packaging stage	Technical measures	Purpose
Inner layer protection	Each box is covered with a PE anti-static and moisture-proof bag, and desiccants are placed inside	Isolate moisture and prevent condensation
Middle layer filling	EPE pearl cotton corner protectors are installed at the four corners, and the gaps are filled with sufficient partitions	Buffering and shock-absorbing to prevent deformation from bumps and knocks
Outer box reinforcement	It is packed in a five-layer reinforced corrugated box, fully sealed with tape, and marked with "Fragile" and "Up"	Easy to identify and adaptable to multiple transfers
Pallet fixation	Stacked on fumigated glued laminated timber pallets, with corrugated spacers between each layer, and bundled as a whole with stretch film and packing straps	It is convenient for forklift loading and unloading and prevents pallets from toppling over

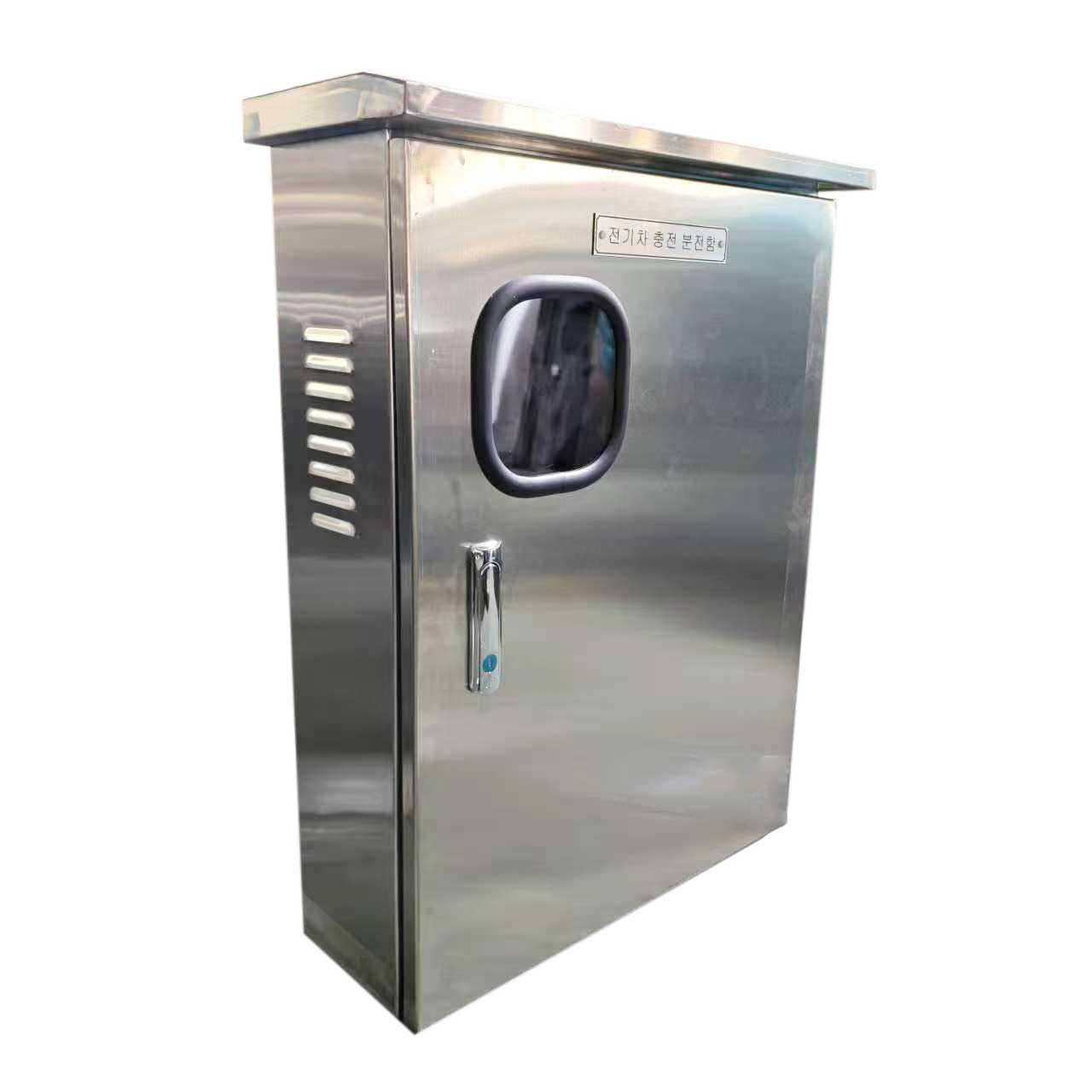

In addition, each pallet is affixed with both Chinese and English shipping marks and a list of customer project numbers. The custom nameplate on the outside of the box (" Electric Vehicle Charging Distribution Box ") and the glass observation window are all additionally covered with film for protection to prevent scratches.

Ouyue Electric: Continuously providing reliable distribution boxes for new energy charging facilities

This Batch Shipment marks Ouyue Electric's entry into the field of Outdoor Rainproof Electric Vehicle Charging Distribution Box It has achieved a full-process closed loop from "customized development - sample trial production - mass production - international delivery". The company has the capacity for parallel production of multiple sizes, and its monthly production capacity can meet the demands of various large-scale procurement. In the future, Ouyue Electric will continue to contribute to the construction of global charging facilities with its professional technology and rigorous delivery.

About Us: China Ouyue Electric Co., Ltd. has been dedicated to the manufacturing of metal distribution boxes for over a decade, offering a one-stop service ranging from drawing design, sheet metal processing, surface spraying to final assembly. Welcome customers to inquire about customizing various stainless steel distribution boxes, stainless steel outdoor rainproof boxes, charging pile matching boxes and industrial control cabinets.
