How to choose the right type of Stainless Steel Monitoring Box?

What is stainless steel monitoring box?

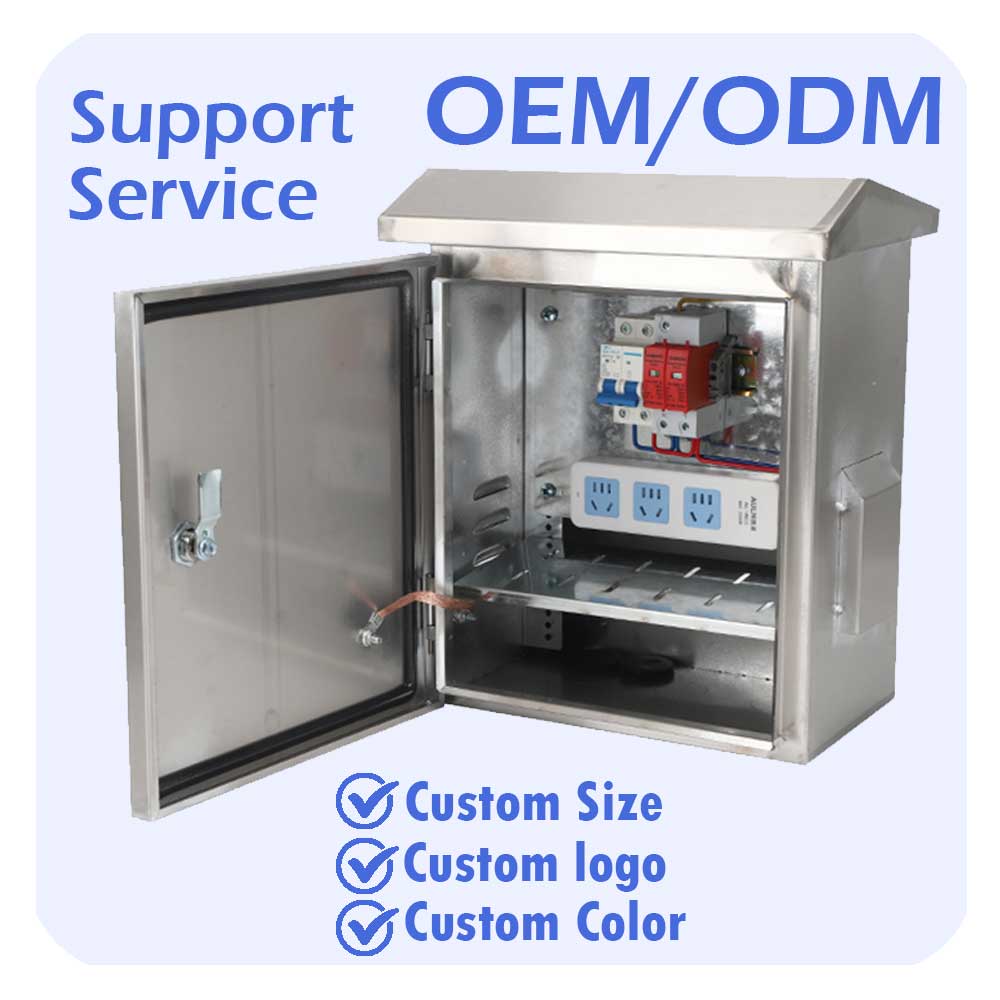

Stainless steel monitoring box is an all-weather electrical equipment protection box specially designed for outdoor security monitoring system. It is mainly used to accommodate and manage surveillance cameras, network switches, optical fiber transceivers, power modules and other related equipment.

Its main function is to provide comprehensive protection against rain, dust, rust, lightning and electromagnetic interference for internal electrical equipment, and ensure the long-term stable operation of the monitoring system in the complex outdoor environment.

Type selection guide

When choosing a stainless steel monitoring box, it is recommended to pay attention to the following aspects:

• Material selection: Based on the degree of corrosion in the installation environment, choose different grades of stainless steel materials such as 201, 304 or 316L. For highly corrosive environments (such as coastal areas and chemical industrial zones), it is recommended to use 304 or higher grades.
• The thickness of the sheet: The standard thickness is 1.2mm to 1.5mm. For applications with higher force requirements, 2.0mm can be selected.
• For protection level: It is recommended to choose IP55 or above for general outdoor environments. For rainy areas or exposed installations, IP65 or higher can be selected
• Size specification: The size of the box should be determined comprehensively based on the number of devices installed inside and the space required for heat dissipation, with reasonable allowance for future expansion.
• Function configuration: Confirm whether it integrates lightning protection, automatic reclosing, temperature-controlled fans, and box opening lighting functions.
• Installation method: Select different installation structures such as wall-mounted, pole-mounted or floor-standing, etc. according to the on-site conditions.

Main application scenarios and selection suggestions

Application scenarios	Recommended materials	Grade of protection	Key configuration
Urban/Residential	304	IP55	Automatic reclosing + power lightning protection
Transportation/Highway	304	IP55	Pole installation + two in one lightning protection
Port/terminal	316L	IP65	Salt spray resistant + sealing tape
Petroleum & Chemical industry	316L	IP65	Explosion-proof structure + temperature-controlled fan
Forest/Park	304	IP65	Solar power supply interface + heating plate
Data center/base station	304	IP65	Large space + intelligent temperature control

Size specification reference

Width x height x depth (mm)	Application scenarios
250*300*160	Single camera + small power supply
300*400*200	1-2 cameras + switches
400*500*200	Multi-channel camera + optical transceiver
Design on demand	Special dimensions or interior layout

China Ouyue Electric Co., Ltd. focuses on metal electrical box manufacturing for more than ten years, with 304 stainless steel monitoring box as the core product, support flexible customization, welcome to consult and purchase.
