How can the problem of difficult land occupation for urban charging piles be solved? The wall-mounted stainless steel distribution box is installed off the ground to free up ground space

I. The spatial predicament behind the dense deployment of floor-standing charging piles

In 2026, global electric vehicle charging infrastructure continues to expand rapidly. According to IEA data, the number of public charging points worldwide has surpassed 5 million, with China, Europe, and North America accounting for over 80% of the growth. However, in urban core areas, installing charging stations is facing an increasingly prominent challenge—there's simply no space left for electrical distribution boxes.

In typical European old town districts, sidewalk widths are often less than 3 meters. A floor-mounted electrical distribution box occupies approximately 0.3 to 0.5 square meters of ground space, not only reducing pedestrian width but also posing a tripping hazard. In underground parking garages within residential communities, where every inch of space is precious, floor-mounted distribution boxes require additional room for installation bases and anti-collision posts, further compressing the available area.

Charging station operators face three practical challenges during intensive deployment: large footprint of distribution boxes, difficult approval processes, and vulnerability to vehicle collisions. The concept of wall-mounted stainless steel distribution boxes involves installing them on walls or poles at elevated positions, eliminating the need for ground space, making them an increasingly preferred solution in urban charging scenarios.

II. Wall-mounted beam structure: Pre-assembled in the factory, and can be hung immediately after drilling holes on site

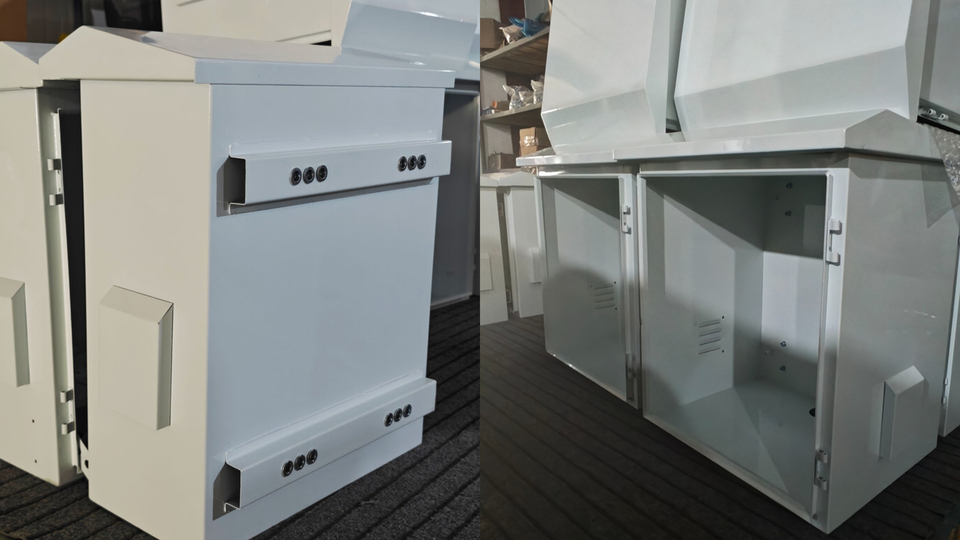

The new wall-mounted stainless steel outdoor waterproof distribution box from Ouyue Electric features a mounting beam installed on the back, which is the key structural component enabling elevated installation. The beam, made of stainless steel profile, is secured to the back panel of the enclosure with bolts and is designed to bear the full weight of the box when fully loaded.

As shown in the second photo, installation holes are pre-drilled at both ends of the beam. During on-site installation, simply insert expansion bolts into the wall or upright column, hang the enclosure, and tighten the nuts to secure it—no welding or complex mounting brackets required. Compared to traditional floor-mounted distribution boxes that require concrete foundations and embedded anchor bolts, this wall-mounted design reduces on-site construction time from several hours to less than half an hour.

III. Stainless steel material + IP65 waterproof: Withstands outdoor tests

Elevated installation addresses space and waterproofing concerns, yet wall-mounted distribution boxes still need to withstand long-term exposure to outdoor conditions. This product from Ouyue Electric maintains outdoor-grade standards in materials and protection:

The enclosure is made of 304 stainless steel material, formed through integrated laser cutting and CNC bending. The stainless steel's natural passive film resists damage from ultraviolet rays and rainwater, and the base material will not rust even if the coating is accidentally scratched. This feature is particularly important in urban roadside charging station applications—where distribution boxes are more likely to be hit by flying stones or scraped by pedestrians.

The protection rating reaches IP65. The door panel edges are fitted with EPDM closed-cell foam sealing strips, which are evenly compressed against the door frame when the door is closed, ensuring a continuous, seamless seal around the entire perimeter and capable of withstanding direct heavy rain spray. The roof's waterproof sloped top is formed from a single piece of stainless steel bent into shape, without any welded seams, preventing rainwater from seeping through from above.

The wall-mounted design provides dual protection against water. By suspending the unit off the ground, it prevents equipment from being submerged even when there is standing water on the road. In areas with heavy rainfall and outdated urban drainage systems, this design is more reliable than elevated floor-standing bases.

IV. Three application scenarios for new energy charging in cities

Wall-mounted stainless steel outdoor waterproof distribution box suitable for various urban charging station installation environments:

Wall-mounted: Installed directly on existing walls in underground parking garages and building exteriors, without occupying parking space.

Column-mounted bracket: The charging station box is secured to the roadside utility pole or streetlight pole using a clamp, sharing the same mounting structure as the charging unit.

Side-mounted in equipment room: installed on the side of a distribution room or cabinet, serving as a secondary distribution panel for charging unit circuits, saving interior space within the equipment room.

V. The global growth of charging piles has driven the demand for wall-mounted distribution boxes

According to IEA forecasts, the global public charging infrastructure will need to reach 15 million by 2030 to align with electric vehicle growth targets. This means approximately 10 million additional public chargers must be deployed over the next four years, a significant portion of which will be located in high-density urban areas.

Wall-mounted distribution boxes for urban charging stations are increasingly becoming the preferred solution. Whether in Europe's narrow historic streets, North America's multi-level parking garages, or Southeast Asia's high-density apartment complexes, these locations share a common challenge: limited ground space but ample wall and pillar space available. Wall-mounted stainless steel distribution boxes perfectly meet this global demand by saving floor area through elevated installation, providing IP65 protection against outdoor conditions, and ensuring long service life with durable stainless steel materials.

VI. Ouyue Electric supports rapid delivery

This product from Ouyue Electric is designed with the back wall-mounted crossbeam and IP65 waterproof seal as its core features, and is specially customized for urban outdoor charging scenarios. The product has passed CE certification and IP65 protection level testing. It supports customization of RAL color card colors such as bright orange and grayish white, meeting the regulatory requirements of different markets.

It only takes 7 days to produce the finished product after the product drawings are confirmed. Whether you are a city charging pile operator, a municipal engineering contractor or an overseas power distribution equipment distributor, we welcome you to send technical requirements or installation scene photos. We will provide solution suggestions and sample scheduling as soon as possible.
