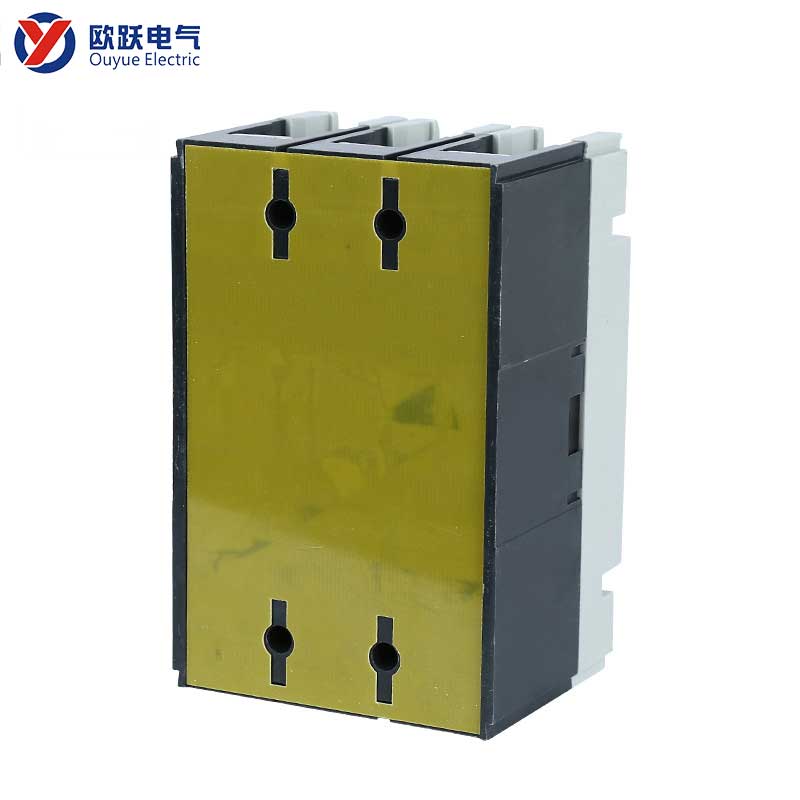

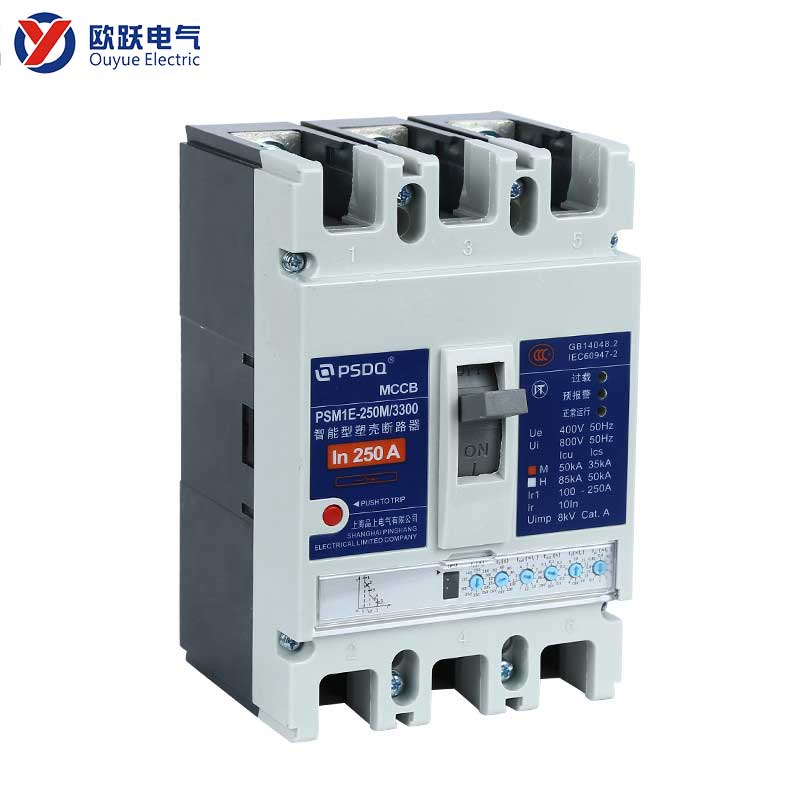

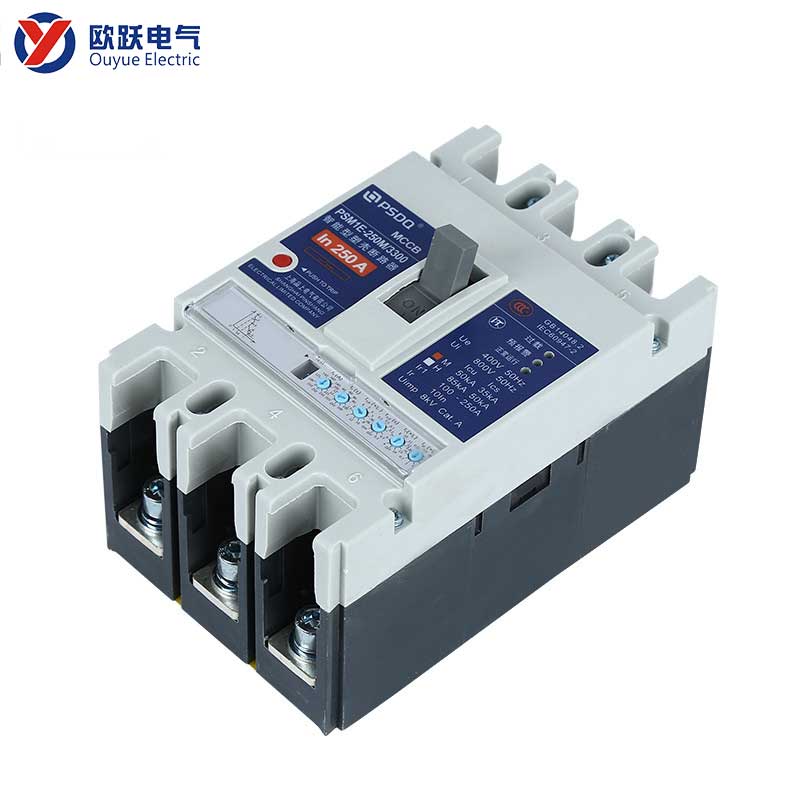

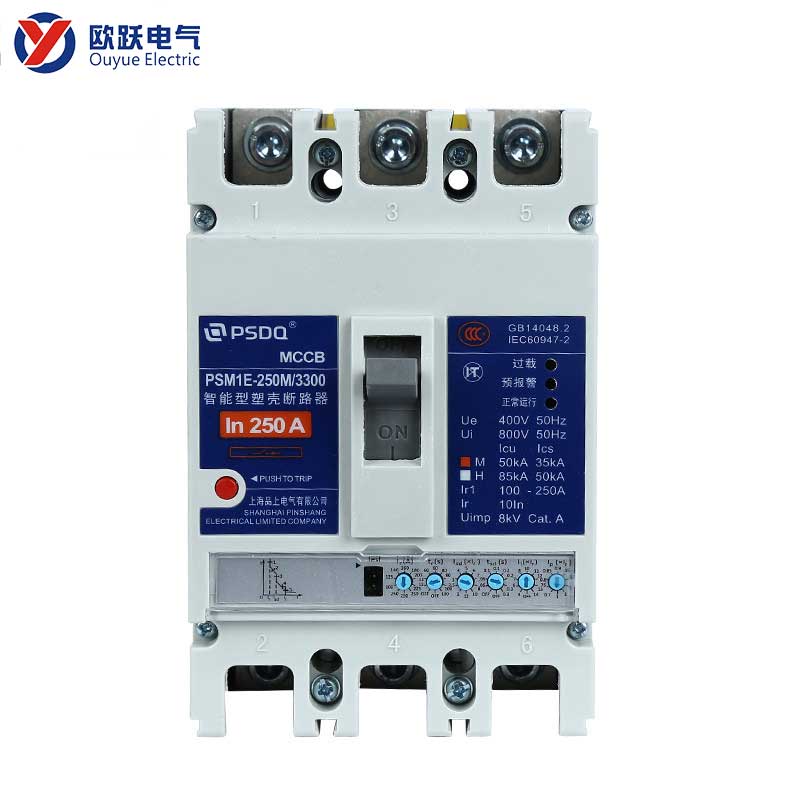

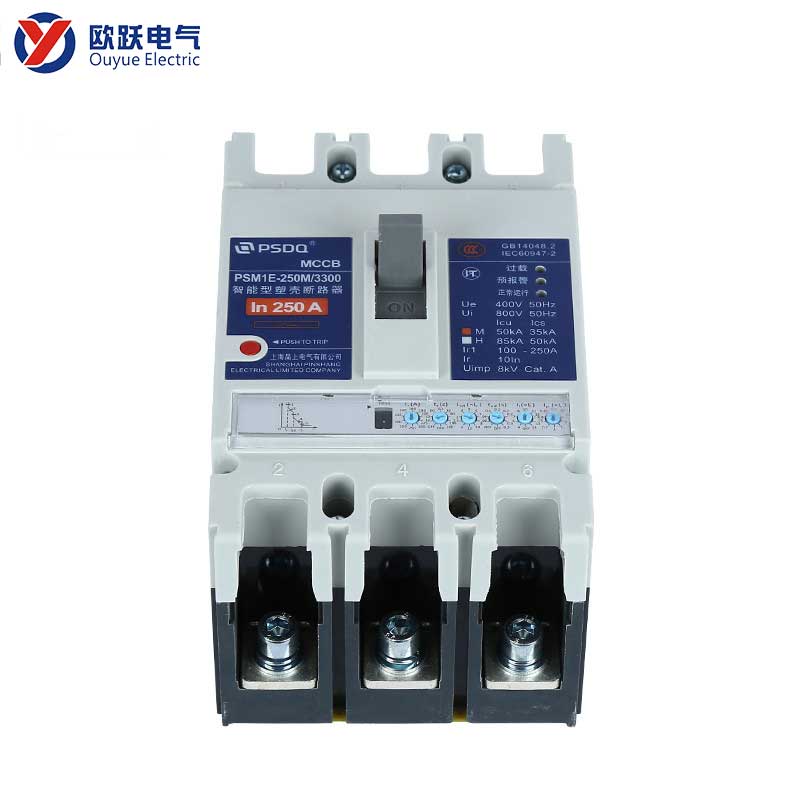

Electronic Intelligent Circuit Breaker 250A 3P

What is a Electronic Intelligent Circuit Breaker?

In the three-phase main circuits of medium-sized industrial production lines, commercial center energy systems or key power equipment, the continuity and safety of power supply are of vital importance. Although ordinary thermal-magnetic circuit breakers can provide basic protection, their protection curves are fixed and the error range is relatively large. In multi-level distribution systems, they are prone to cause over-level tripping, leading to an expansion of unplanned power outages and making fault detection rather time-consuming.

The Electronic Intelligent Circuit Breaker 250A 3P is precisely designed to solve this circuit problem.

It adopts an advanced electronic trip unit, replacing the traditional bimetallic strip and electromagnet. Through digital setting and monitoring, it solves circuit problems.

Core advantages of the product

• Full parameter digital setting: Users can precisely set the current values and times for overload long-delay (L), short-circuit short-delay (S), instantaneous (I), and ground fault (G) protection through local knobs or handheld debuggers, achieving perfect selective coordination with upper and lower circuit breakers, effectively isolating faults, and ensuring the normal operation of other parts of the system.
•  Wider adjustment range: The electronic trip unit offers a broader current and time adjustment range than the thermal magnetic type. A single product can adapt to more diverse load requirements, enhancing selection flexibility and inventory universality.
• Stronger environmental adaptability: The performance of electronic trip units is much less affected by environmental temperature than that of thermal magnetic types. They can maintain protection accuracy over a wider temperature range, making them particularly suitable for industrial environments with large temperature differences.
• Robust industrial design: Utilizing a high-strength casing and reliable mechanical structure, it ensures long-term stable operation under harsh conditions such as vibration and humidity.

FAQ

Q: How should I choose between electronic and ordinary thermomagnetic (TM) circuit breakers?

A:The key to selection lies in the requirements for protection accuracy and system coordination. If the load is stable, the system is simple and cost is sensitive, the thermomagnetic type is an economical choice. If the system has multi-level power distribution, the load may change, or there are requirements for preventing over-level tripping and rapid fault location, electronic type is a better choice. It can avoid large-scale power outages through precise Settings.
