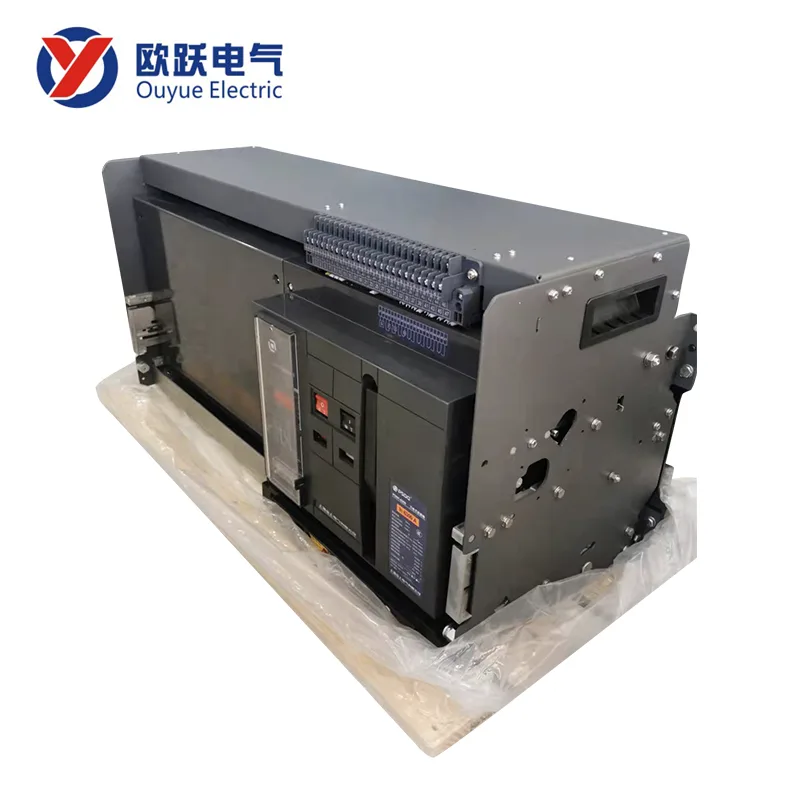

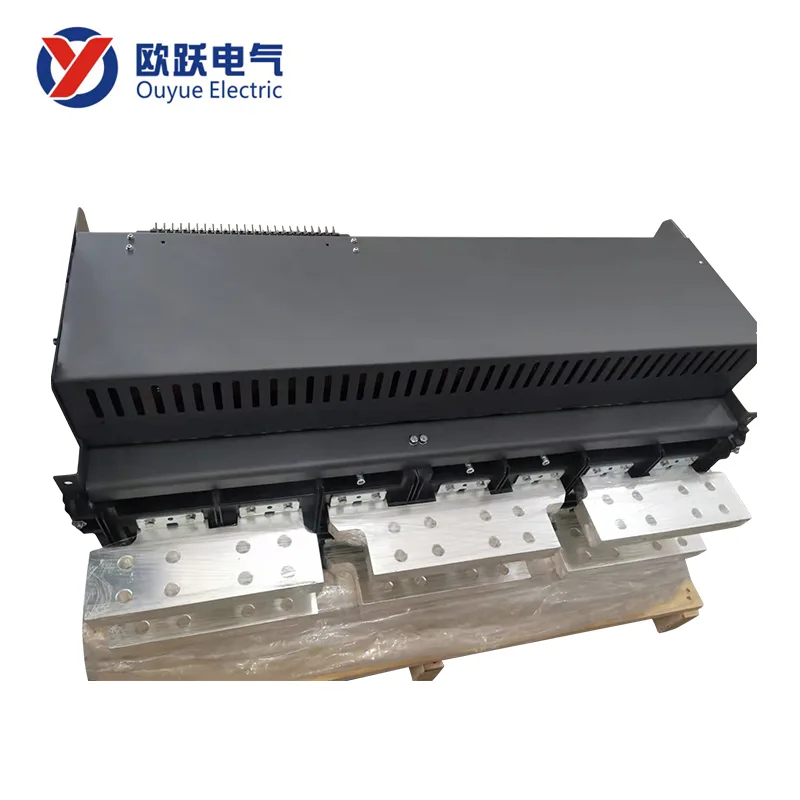

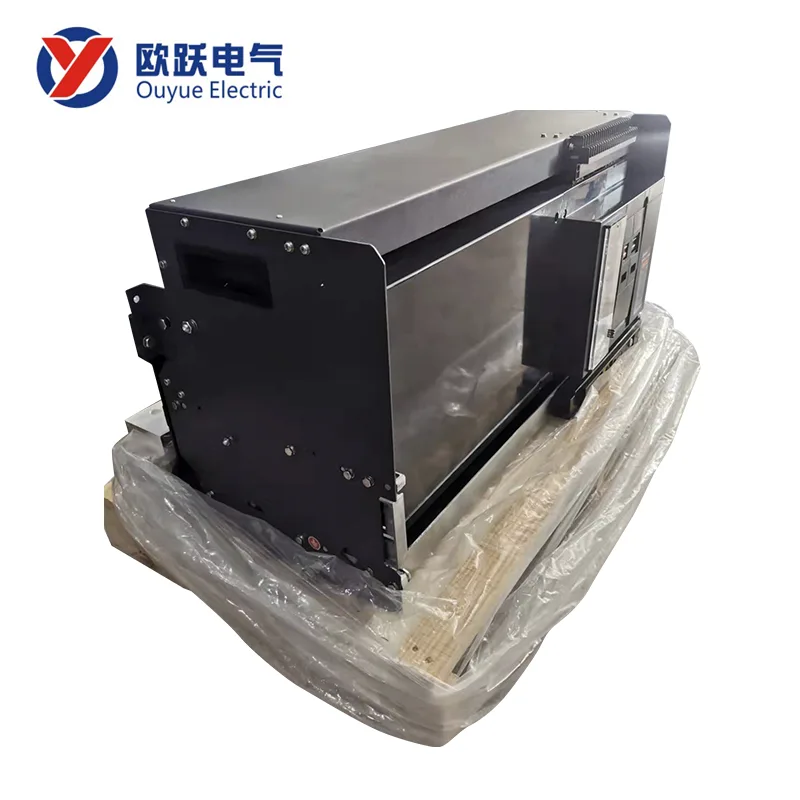

Universal Circuit Breaker Drawer Type 6300A 3P

The Universal Circuit Breaker Drawer Type 6300A 3P adopts a drawer-type plug-in structure, placing the circuit breaker body in an independent pull-out unit. It can complete installation, commissioning and replacement actions without turning on the main circuit power supply, greatly enhancing the continuity of the power supply system.

Product details

This product has added an auxiliary coil, enhancing the accuracy of circuit acquisition. It adopts a new contact material, AgNi30C3, to ensure the segmentation capability and wear resistance. It also increases the contact area, enhances the segmentation capacity and dynamic and thermal stability.

Product application

The drawer-type universal circuit breaker can be applied in medium and low voltage power distribution systems in industrial plants, commercial centers, etc., and is particularly suitable for places where uninterrupted power supply and rapid fault recovery are required.

Product parameters

Our company offers the following specifications in stock. If you have any other requirements, please feel free to contact our engineering team.

Q&A

Q：Is it simple to replace the circuit breaker body? Does it need to replace the entire drawer unit?

A：It's very simple. Generally, you just need to take the old body out of the drawer frame and replace it with the new one. The drawer frame (including the guide rails, plugs, etc.) is universal and does not need to be replaced.

Q：What are the advantages of drawer-type compared with fixed type?

A：The advantage lies in that all operations of the drawer-type system do not require disconnection of the upstream main power supply, reducing power outage time and avoiding the risk of live-line work.

Q：What does the product packaging look like?

A：Our normal packaging is that the drawer unit and the circuit breaker body are packaged separately and independently, which is safer and more stable.
