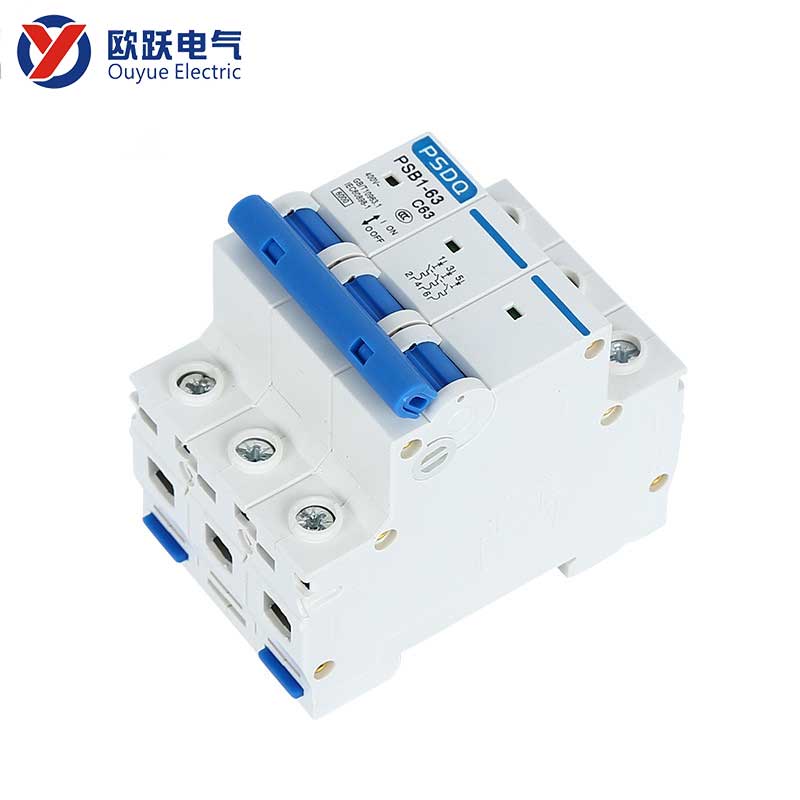

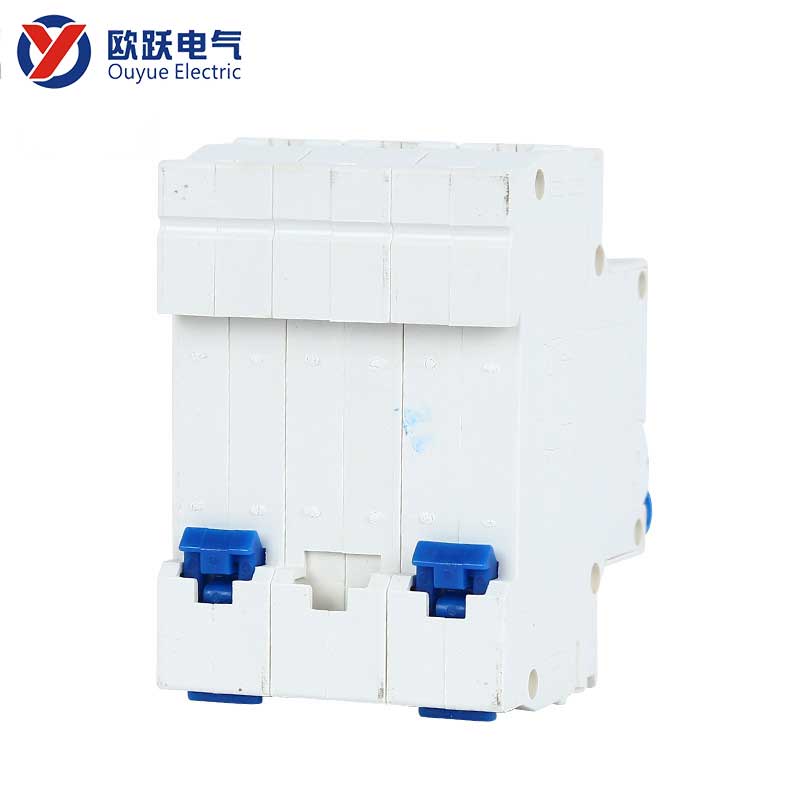

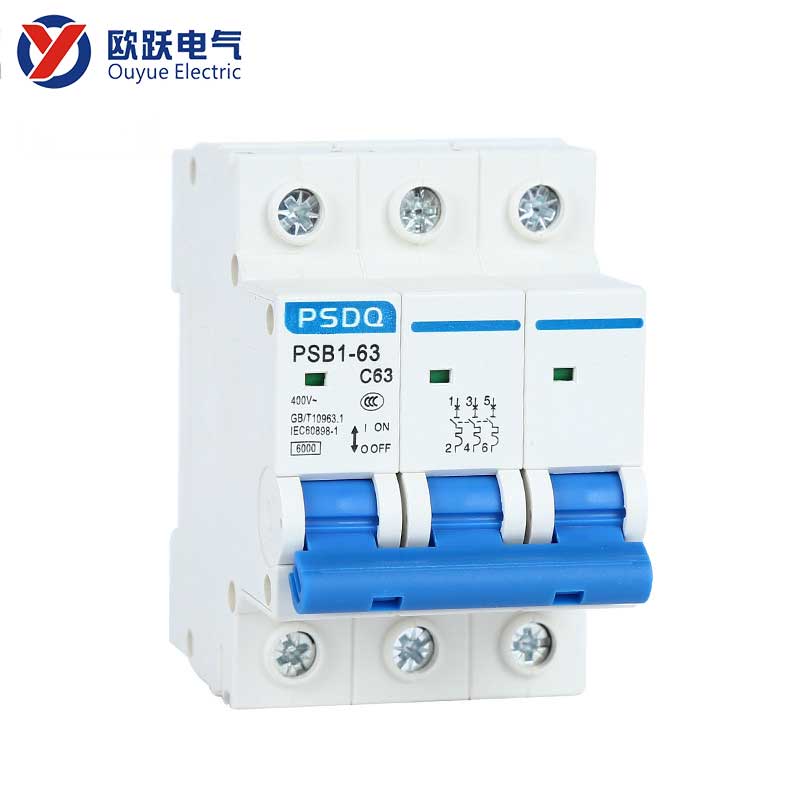

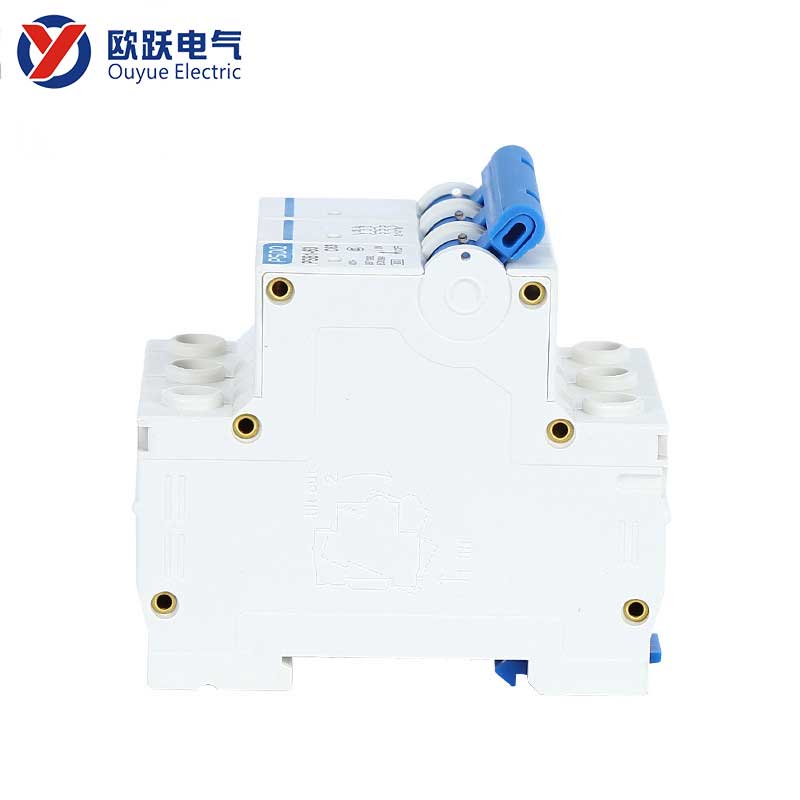

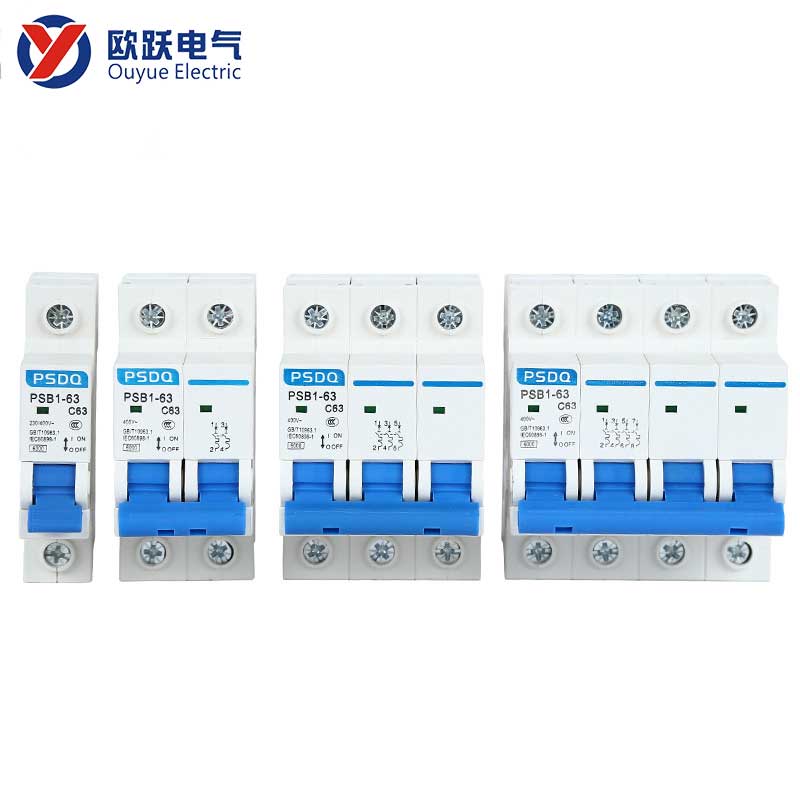

Small Circuit Breaker 3p

This product is specifically designed to provide reliable fire protection for terminal circuits.

In daily life, situations such as aging circuits and unexpected damage to equipment may generate milliampere-level leakage currents. Although these currents are small, they are sufficient to cause electrical fires. To protect the circuit, the small circuit breaker 3P is specially designed for this circuit risk. It can continuously monitor the leakage in the circuit loop and cut off the power supply at the moment of danger (≤0.1 seconds).

Core advantages of the product

1. Sensitive response: This product is equipped with a high-precision leakage detection module, which can effectively identify leakage currents harmful to the human body (such as 30mA) and trip instantly.

2. Ready-to-use: The snap-on design is compatible with standard 35mm rails, making wiring simple. Upgrading or replacing existing circuits does not require complex modifications.

Detailed technical parameters

Parameter item	Specification description
Product Name	Small Circuit Breaker 3P
Poles	3P
Rated current	16A, 20A, 25A, 32A, 40A, etc. (Available upon request)
Rated leakage operating current	30mA (Other specifications available)
"Tripping feature"	Type C
Meet the standards	CE
Installation method	Standard 35mm rail installation

Application scenarios

Home safety: Socket circuits in high-humidity areas such as kitchens and bathrooms; Dedicated lines for high-power electrical appliances such as air conditioners and water heaters.

Commercial stores: Terminal circuits for lighting and sockets in shops and offices; Independent protection of equipment such as cash registers and advertising light boxes.

Small equipment: Special protection switches for outdoor water pumps and power tools.

System renovation: Leakage protection can be added to the old distribution boxes.

Export accessories: Provide leakage protection components for complete sets of equipment and control cabinets that require CE certification.

Please provide the following information to obtain precise selection and quotation：

1.Equipment type and power (e.g., 3kW three-phase motor).

2. The required rated current and tripping characteristics (Type C or Type D).

3. Purchase quantity and project requirements (such as whether CE certification is needed).

Our professional team will quickly provide you with the best configuration plan and the most favorable price.
